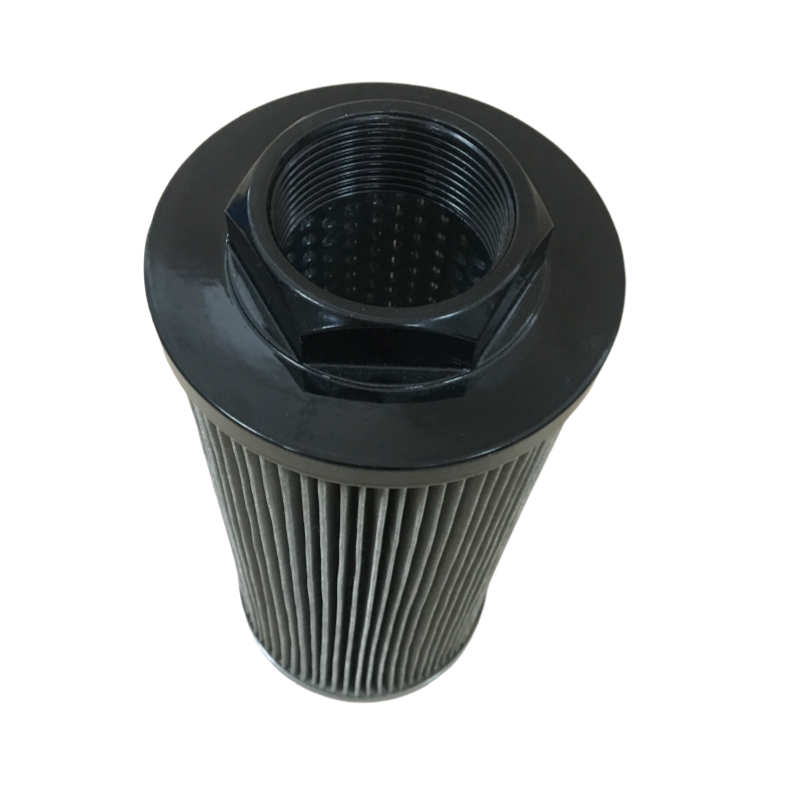

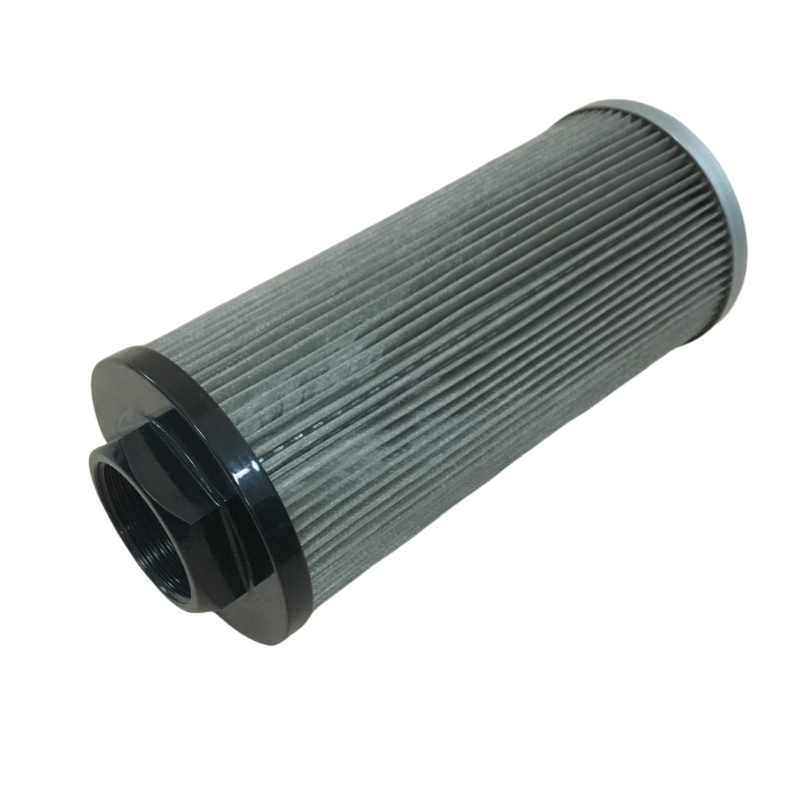

The basic information of SFF-06 and SFF-08 oil suction filter elements is as follows:

1. Product use:

- These filter elements are used in hydraulic oil systems. Their main function is to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system. They are widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, ships, chemicals, textiles, various power machinery and other industries.

2. Filter element filter material:

- Filter materials include glass fiber, filter paper, metal mesh, metal powder, metal sintering, sintered felt, etc.

3. Filter accuracy:

- Glass fiber filter material: 1-70μm (micrometer); metal mesh filter material: 3-400μm (micrometer); filter paper filter material: 5-40μm.

4. Technical parameters:

- Working pressure: 16bar, special requirements can be customized.

- Maximum working temperature: 120℃.

- Working flow: 2-2600L/min.

- Pressure difference alarm: 1bar, 3bar, 3.5bar.

- Sealing material: PTFE, FKM.

5. Filter element testing standards:

- Including but not limited to the following international standards:

- ISO 2941 Filter element rupture resistance test method

- ISO 2942 Hydraulic filter element structural integrity test method

- ISO 2943 Hydraulic filter element material and liquid compatibility test method

- ISO 3723 Filter element end compliance test

- ISO 3724 Filter element fatigue characteristic determination

- ISO 3968 Filter element pressure difference flow characteristic

- ISO 4572 Filter element multiple pass method for determining filtration characteristics.

6. Main application areas:

- Used for filtration of rolling mill, continuous casting machine hydraulic system and filtration of various lubrication equipment.

- Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production processes, liquid purification, purification of magnetic tapes, optical disks and photographic films in manufacturing, and particle removal filtration of oil field injection water and natural gas.

- Textile: stirring liquid, air suspension, wetting, running accumulator, spraying, spraying system, infusion. Purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressors, deoiling and dewatering of compressed gases.

- Electronics and pharmaceuticals: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of detergents and glucose.
