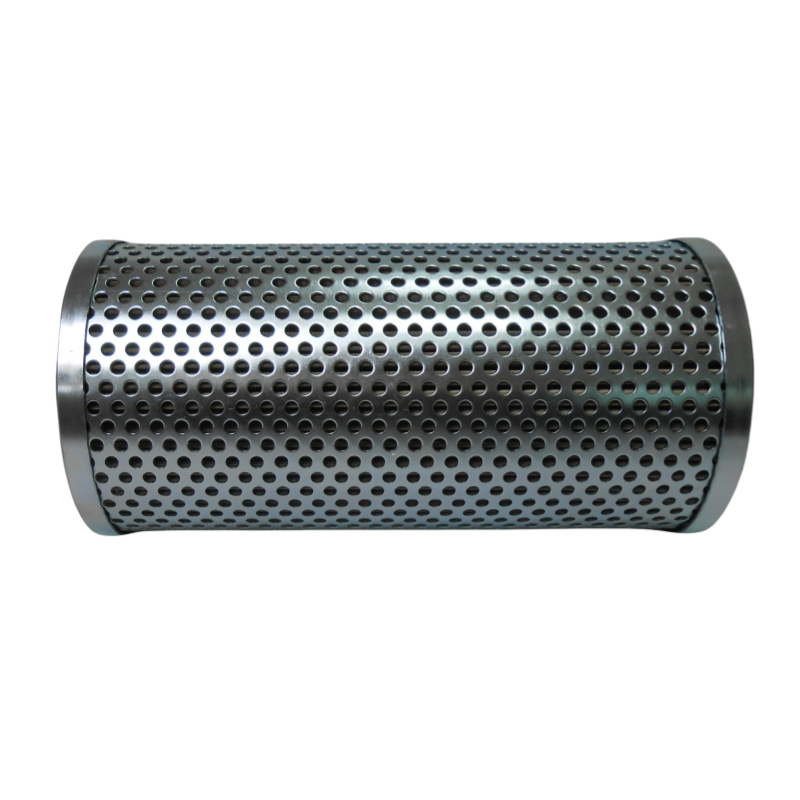

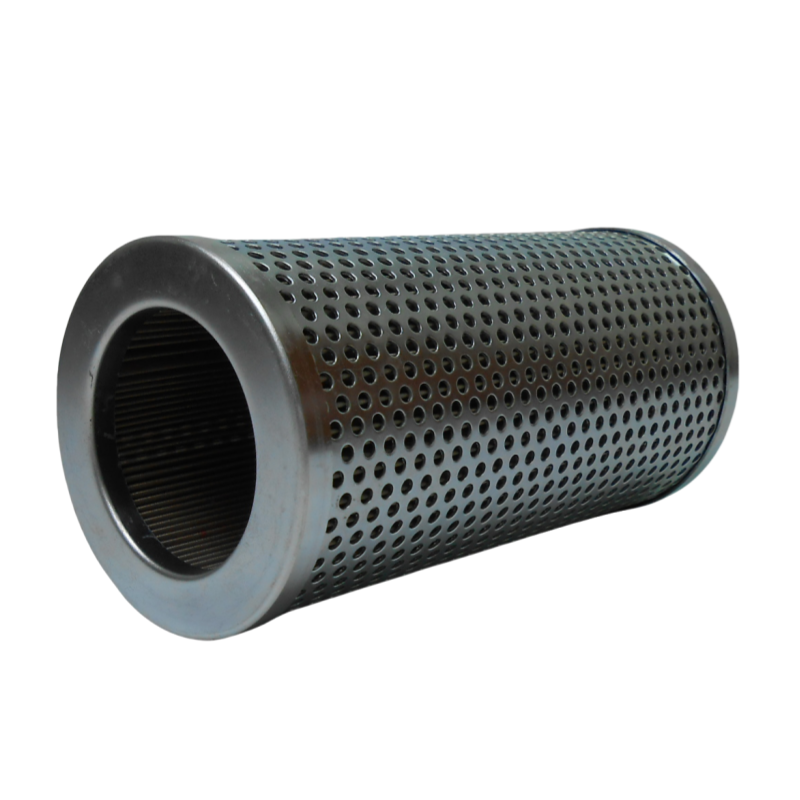

The basic information of SF510M25 oil suction filter is as follows:

1. Filtration accuracy: The filtration accuracy of SF510M25 oil suction filter is 25 microns (μm).

2. Working temperature: The working temperature range is -30~115℃.

3. Maximum working pressure: The maximum working pressure is 420 kg, that is, 4.2MPa.

4. Pressure difference: The minimum pressure difference is 0.2MPa.

5. Filter material: Filter materials include glass fiber, metal mesh, filter paper, sintered felt, sintered mesh, powder sintering, polypropylene, etc.

6. Product use: SF510M25 oil suction filter is used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system. The main application areas include power plants, steel mills, shield tunneling, mining, papermaking, petroleum, ships, chemicals, textiles, various power machinery and other industries.

7. Filter element testing standards: including ISO 2941 to ISO 4572 and other international standards, involving filter element rupture resistance, structural integrity, material and liquid compatibility, end-to-end compliance test, fatigue characteristic determination, pressure differential flow characteristics and multiple pass method of filtration characteristics.

8. Technical parameters: rated flow rate is 6~9100 L/min; working pressure does not exceed 450 kg; working temperature is -30~120℃.
