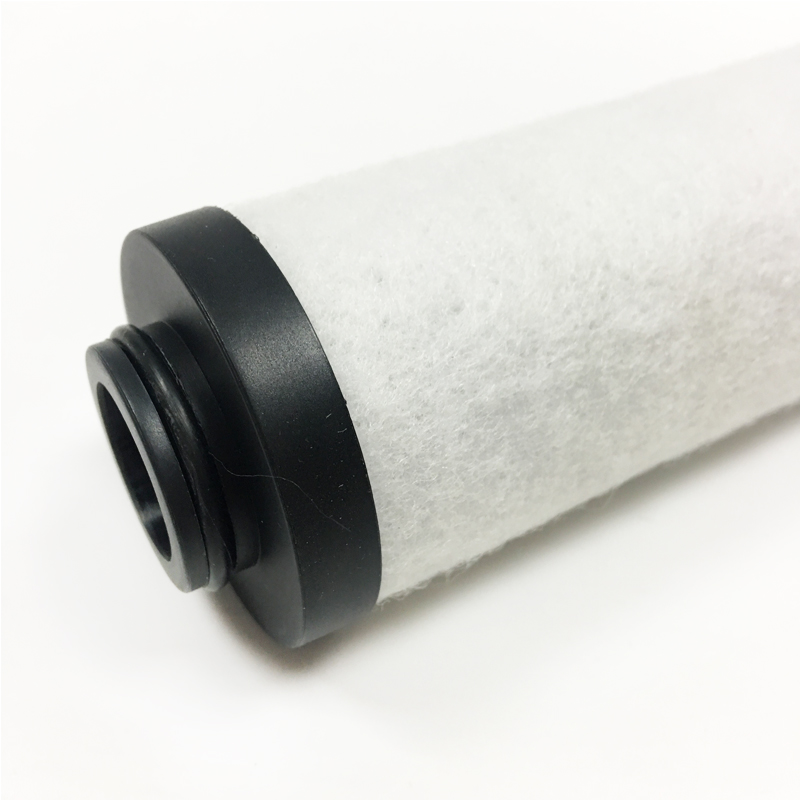

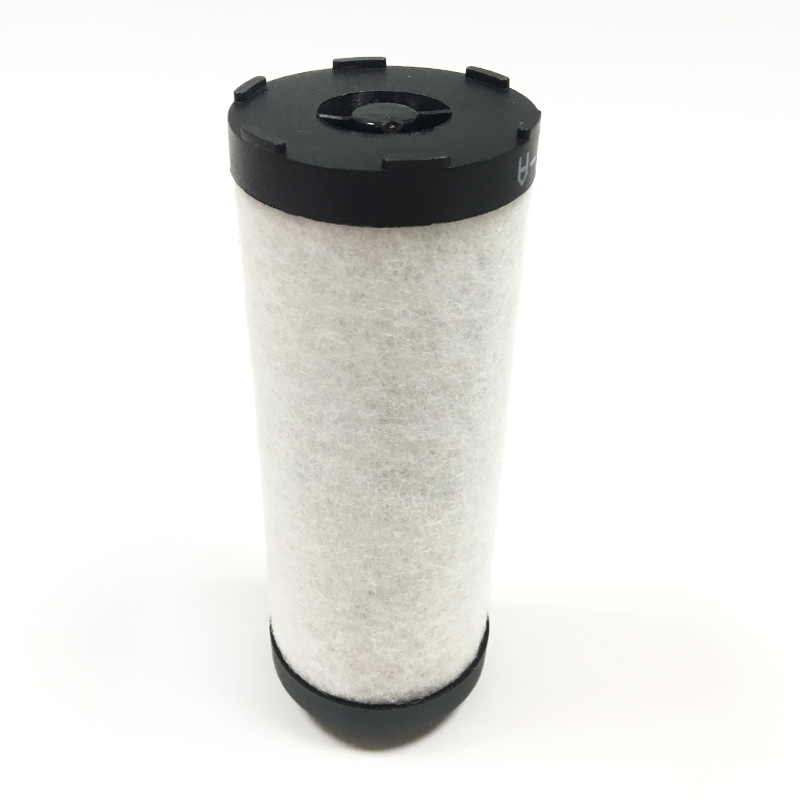

The basic information of SAF-A-120 compressed gas filter element is as follows:

1. Product use:

- SAF-A-120 compressed gas filter element is mainly used to filter solid particles, liquid droplets and oil components in compressed air, and is suitable for removing these impurities from the gas.

2. Filtration accuracy:

- The filtration accuracy can reach 120 microns (μm), which is suitable for protecting equipment such as pressure reducing valves, vacuum pressure reducing valves, and can be used for clean gas filter elements.

3. Main materials:

- The filter element material is SUS316 sintered metal, the shell and cover material is also SUS316 (inside and outside: electrolytic grinding), and the sealing material is fluororubber (FKM).

4. Working pressure:

- The operating pressure is MAX.0.99MPa, vacuum 1.3×10^-6kPa.

5. Working temperature:

- The operating temperature range is 5~80℃.

6. Filter element differential pressure resistance:

- The filter element differential pressure resistance is MAX.1.0MPa.

7. Filter element back differential pressure:

- The filter element back differential pressure is MAX.1.0MPa.

8. Rated flow rate:

- The rated flow rate varies depending on the model. For example, the rated flow rate of the SFB200 series is 400 L/min (ANR).

9. Filter area:

- The filter area is 10 cm².
