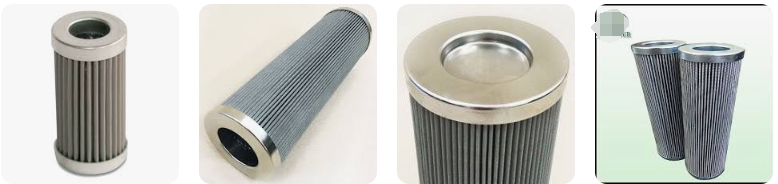

The PI 8430 DRG 60 filter element is a high-quality hydraulic filter designed for use in various industrial and mobile hydraulic systems. It is engineered to protect hydraulic components from particulate contamination, ensuring the efficiency and longevity of the system. Here are the detailed specifications and applications for the PI 8430 DRG 60 filter element:
Filter Specifications:
Element Type: FG standard
Nominal Size: 300 l/min
Height: 255.50 mm
Outer Diameter: 84.00 mm
Inner Diameter: 47.50 mm
Mounting Diameter: 47.50 mm
Differential Pressure Resistance: 20.00 bar
Filter Surface: 2.914 cm²
Filter Material: Wire mesh
Filter Rating: 60.00 µm
End Cap Material: Plastic end cap PA
Collapse Pressure Resistance: Up to max. 210 bar
Temperature Application Range: -10 °C to +120 °C
Product Weight: 0.991 KG
Applications: The PI 8430 DRG 60 filter element is used in hydraulic and lubricating oil filtration as suction filters or coarse filters. It is suitable for highly viscous media and serves as a safety filter in cooling lubricant filtration. As a surface filter, it has a sharp separation boundary, although it has a lower dirt-holding capacity compared to depth filters.
Industry Compatibility: The filter element is designed to be compatible with a wide range of industrial applications, including but not limited to:
Industrial machinery
Mobile hydraulic systems
Agricultural and construction equipment
Lubricating oil systems
Similar Models: For customers looking for alternative or similar models, here are some extended models that may be suitable:
8345DRG25
PI8345DRG40
PI8408DRG60
PI8415DRG60
PI8445DRG60
PI8505DRG100
And others listed in the product catalog
It's important to note that the PI 8430 DRG 60 filter element is a specific part and may not be directly interchangeable with other models without proper verification of compatibility. It is always recommended to consult with the equipment manufacturer or a professional filter supplier to ensure the correct filter element is used for your specific application. This ensures optimal performance and compatibility with your machinery.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
