Product Information:

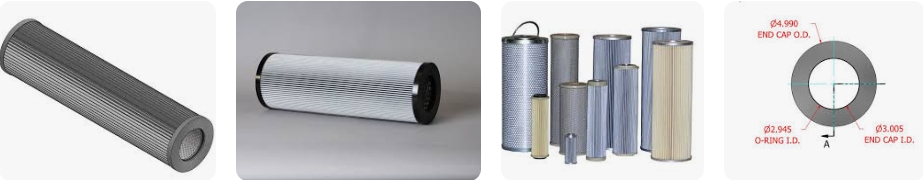

• Part Number: PH530-03-CGV
• Description: This hydraulic oil filter element is designed to remove contaminants and impurities from hydraulic systems, ensuring the cleanliness and efficient operation of the hydraulic fluid.

Technical Specifications:

• Filter Type: Hydraulic Oil Filter Element
• End Caps Material: Galvanized Carbon Steel, Stainless Steel, Nylon Plastic, Aluminum Machining, and other standard materials.
• Frame Material: Galvanized Carbon steel punching frame, stainless steel punching frame, etc.
• Filter Material: 304 Stainless Steel Mesh, Glass Fiber, Oil Filter Paper, and other standard materials.
• Filter Accuracy: 1~100um; filtration ratio: X≧100.
• Collapse Pressure: 21bar to 210bar
• Filter Media: Suitable for conventional hydraulic oil, lubricating oil, fuel, etc.
• Operating Temperature: -30℃ to +100℃
• Structure Strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa.
• Position: Can be used on the suction line, pressure oil line, return line, bypass, and separate filter system.
• Application: Widely used in steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemicals, machine tools, construction machinery, and other fields.

Usage Instructions:

1. The hydraulic filter element is used to filter out particles and rubber impurities in the hydraulic system to ensure system cleanliness. When refueling, hydraulic oil must be filtered, and refueling tools should be clean and reliable. The filter at the filler port of the hydraulic oil tank should not be removed to increase fueling speed. Fueling personnel should use clean gloves and work clothes.
2. Ensure that hydraulic oil is not used at high temperatures; the oil will quickly oxidize and deteriorate at high temperatures. The air filter on the hydraulic station should use a filter that can filter both particles and moisture, available on the market.

Packaging and Transportation:

• Packing: Plastic bag inside, paper box outside, or as negotiable.
• Transportation: DHL, UPS, FEDEX, SF, and other international express services, by air, by sea, or special line services.

Production Time and Warranty:

• Production Time: 10 workdays after payment, negotiable.
• Warranty: 12 months/365 days after shipment.

Testing Standards:

• ISO 2941 Filter element-Test method for filter element rupture resistance
• ISO 2942 Filter Element-Test Method for Structural Integrity of Hydraulic Filter Element
• ISO 2943 Filter Element-Test Method for Compatibility of Hydraulic Filter Element Material and Liquid
• ISO 3723 filter element-end-to-end compliance test
• ISO 3724 filter element-determination of fatigue characteristics
• ISO 3968 Filter Element-Differential Pressure Flow Characteristics
• ISO 4572 Filter Element-Multiple Pass Method for Determining Filtration Characteristics

Please note that the information provided is based on the technical specifications and applications typically associated with this type of filter element. It is essential to verify the compatibility with your specific equipment before making a purchase.
