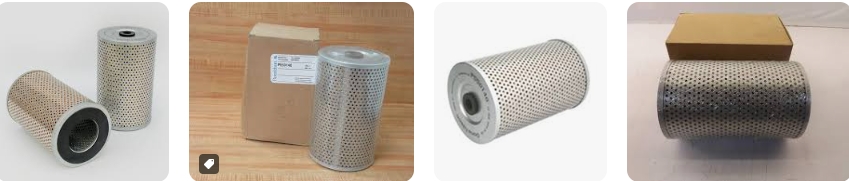

Replacement Donaldson P550140 Hydraulic Filter

Product Information for Filter Element Model P550140

Technical Specifications:

• Filter Type: Hydraulic Oil Filter, Cartridge Style
• Length: 7.04 inches (178.8 mm)
• Inner Diameter: 2.30 inches (58.4 mm)
• Outer Diameter: 4.49 inches (114.1 mm)
• Efficiency Beta 2: 17 micron
• Collapse Burst: 175 psi (12.1 bar)
• Media Type: Cellulose
• Primary Application: CASE/CASE IH 612713C91
• Operating Temperature: -20°C to 100°C
• Working Pressure: Up to 100 MPa

Compatible Equipment and Industries: The P550140 filter element is designed for use in hydraulic systems to remove solid particles and impurities from oil, ensuring the cleanliness and efficiency of the hydraulic fluid. It is suitable for a wide range of applications, including but not limited to:

• Construction Machinery: For the filtration of hydraulic oils in heavy machinery.
• Agricultural Equipment: Specifically compatible with CASE/CASE IH models as mentioned in the primary application.
• Industrial Equipment: Suitable for various hydraulic systems in industrial settings.

Additional Similar Models: For customers looking for alternative or additional filter elements, here are some similar models that may be of interest:

• A P PARTS-2089
• AC DELCO-P372, PF439
• AMERICAN PARTS-696, 773, 889, 2114, 92468, 92472, 92476
• And many more as listed in the cross-reference section.

Please note that the specifications provided are critical for ensuring a proper fit and optimal performance. It is essential to match these specifications when selecting a replacement filter to avoid any operational issues. The above information is intended to assist in maintaining the efficiency and longevity of equipment by using the correct filter specifications.
