Basic Information of MSF-08-100M and MSF-16 Suction Filter Elements

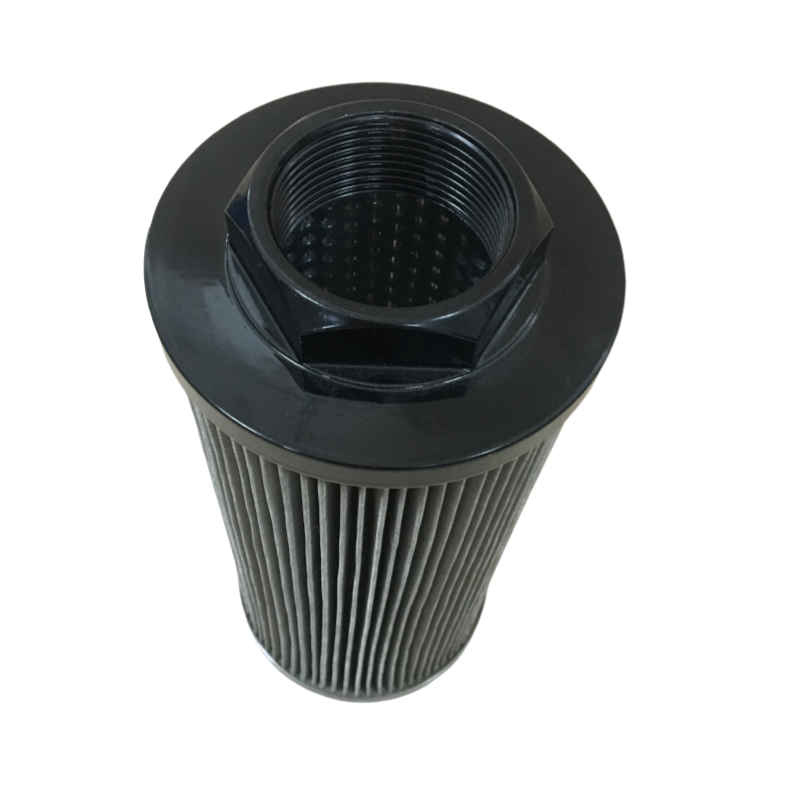

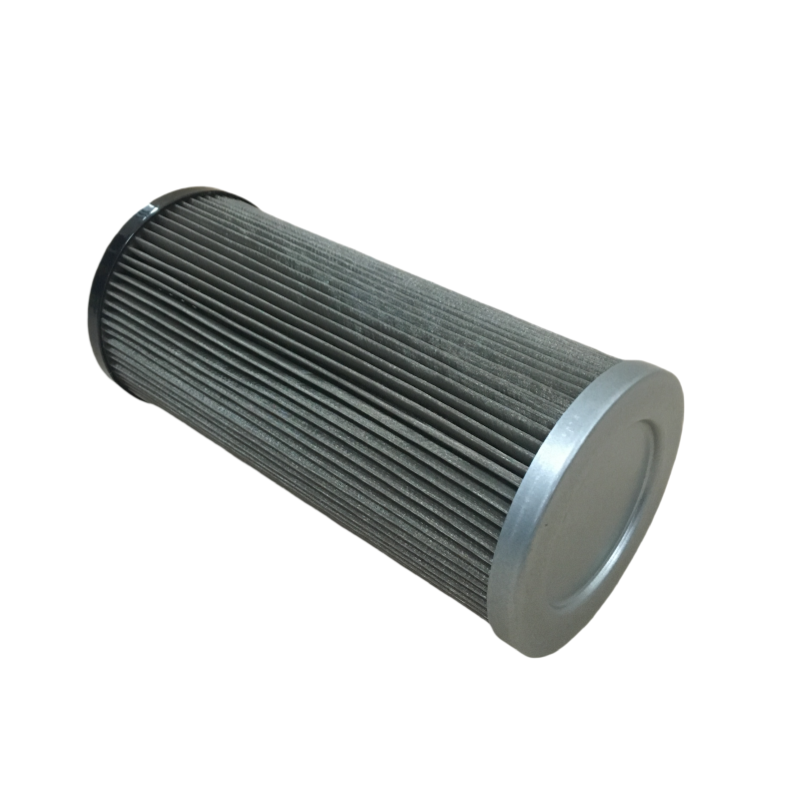

 MSF-08-100M Suction Filter Element

- Purpose: Installed at the inlet of hydraulic pumps, the MSF-08-100M filter element is designed to remove impurities and contaminants from hydraulic oil, protecting the pump and other hydraulic components.

- Filter Materials: Glass fiber, stainless steel mesh, metal powder, or filter paper.

- Filtering Precision:

  - Glass fiber: 1-70 microns.

  - Stainless steel mesh: 3-400 microns.

- Flow Rate: 6-2600 L/min.

- Working Pressure: Up to 16 bar.

- Temperature Range: -30°C to 120°C.

- Applications: Widely used in steel mills, power plants, paper mills, petrochemical industries, and other hydraulic systems.

 MSF-16 Suction Filter Element

- Purpose: Similar to the MSF-08-100M, the MSF-16 filter element is designed to protect hydraulic pumps by filtering out solid particles and contaminants from the hydraulic oil.

- Filter Materials: Glass fiber, stainless steel mesh, or filter paper.

- Filtering Precision:

  - Glass fiber: 1-70 microns.

  - Stainless steel mesh: 3-400 microns.

- Flow Rate: 6-9100 L/min.

- Working Pressure: Up to 450 bar.

- Temperature Range: -30°C to 120°C.

- Applications: Suitable for heavy-duty hydraulic systems in industries such as steel manufacturing, power generation, and mining.

 Testing Standards

Both filter elements comply with international standards, including:

- ISO 2941: Filter burst test.

- ISO 2942: Structural integrity test.

- ISO 2943: Material compatibility test.

- ISO 3723: End load compliance test.

- ISO 3724: Fatigue characteristic determination.

- ISO 3968: Differential pressure and flow characteristics.
