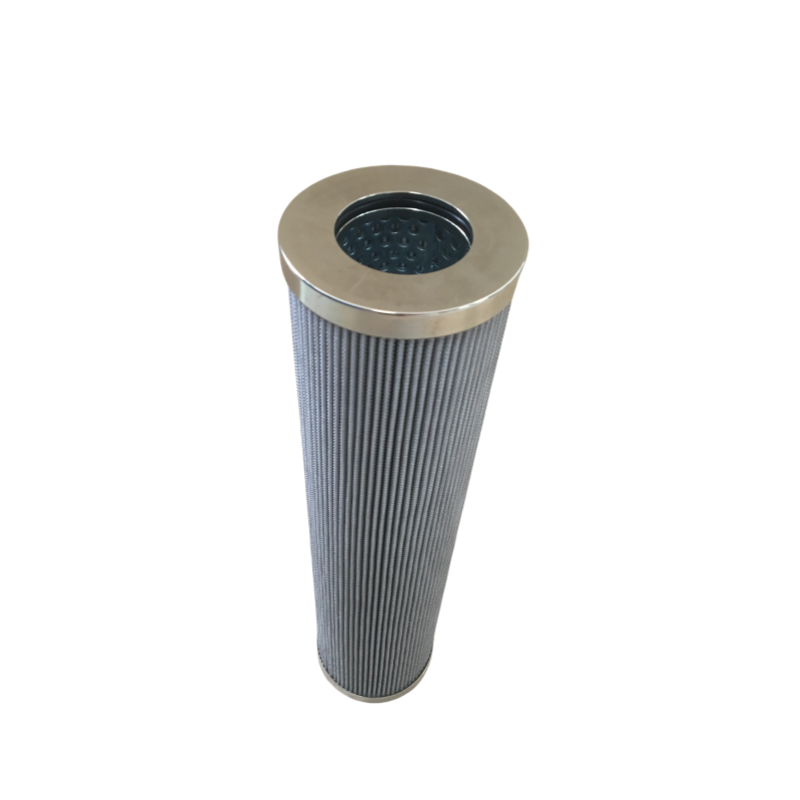

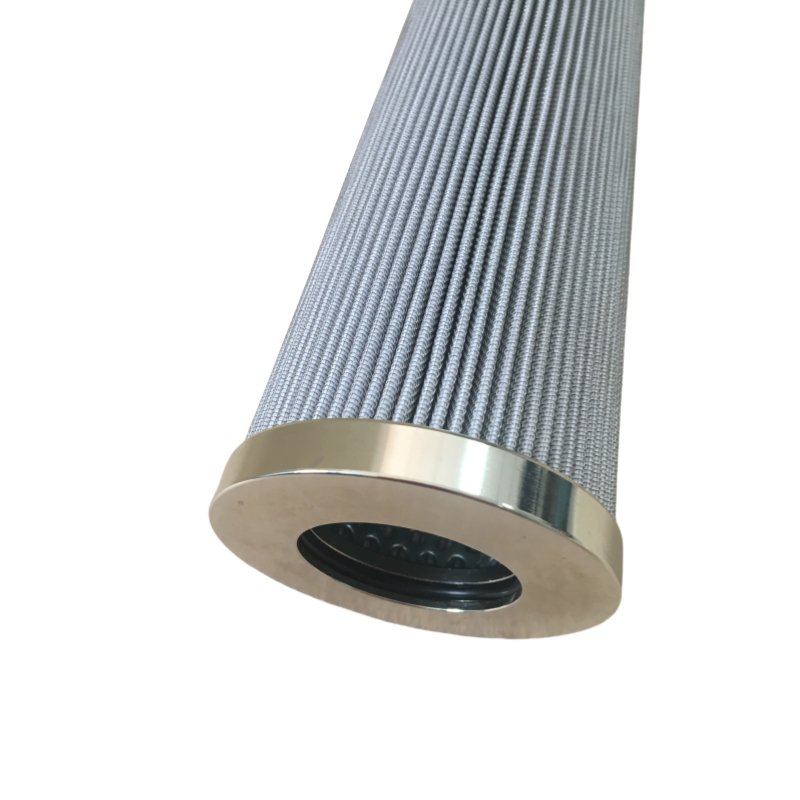

The basic features of IF312-11-CG filter element are as follows:

1. Material and structure: The IF312-11-CG filter element uses high-quality and high-efficiency filter materials, mainly stainless steel woven mesh, sintered mesh, and iron woven mesh. The filter materials are mainly glass fiber filter paper, chemical fiber filter paper, and wood pulp filter paper.

2. Technical parameters:

   - Working pressure: 16bar, special requirements can be customized.

   - Maximum operating temperature: 120℃.

   - Working flow: 2-2600L/min.

   - Pressure difference alarm: 1bar, 3bar, 3.5bar.

3. Filtration precision: The filtration precision of the IF312-11-CG filter element is 10μm.

4. Application fields: Widely used in food processing, plastic industry, paper industry, power plants, petrochemical industry, steel plants, cement plants, ships and other industries.

5. Filtration function: used to protect specific components in the hydraulic system. It is installed upstream of the components that need to be protected in the medium-pressure pipeline to filter out solid particles and colloidal substances in the working medium, effectively control the pollution of the working medium, and Make the component work properly.

6. Durability: With high efficiency (99% efficiency), durable structure, designed by powerful cartridge filter, able to withstand harsh industrial conditions.
