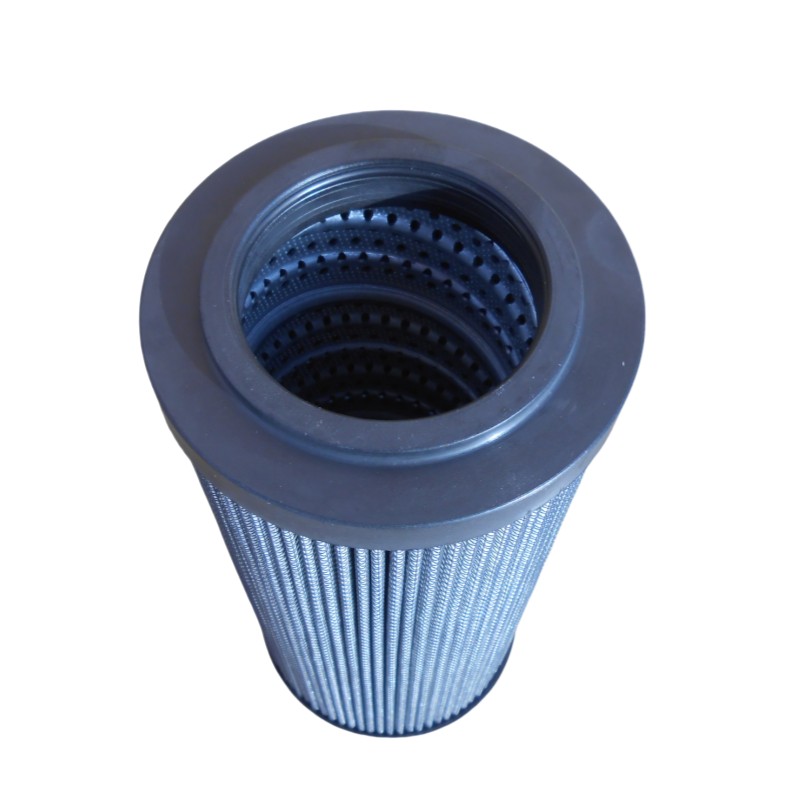

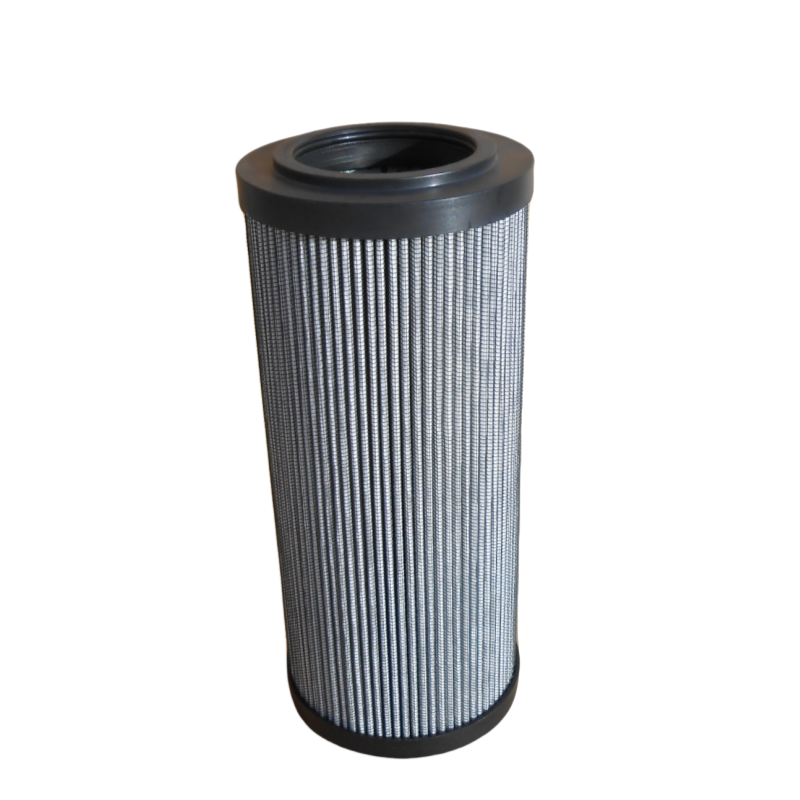

The basic information of HP4002A06AN P01 high-pressure pipeline oil filter is as follows:

1. Product use: This filter element is used in hydraulic oil systems. Its main function is to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system. It is widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, ships, chemicals, textiles, various power machinery and other industries.

2. Filter element filter material: Filter materials include glass fiber, filter paper, metal mesh, metal powder, metal sintering, sintered felt, etc.

3. Filter accuracy: Depending on the different filter materials, the filtration accuracy varies. The glass fiber filter material is 1-70μm, the metal mesh filter material is 3-400μm, and the filter paper filter material is 5-40μm.

4. Technical parameters:

- Rated flow rate: 6~9100 L/min;

- Working pressure: ≤450 kg;

- Working temperature: -30~120℃;

- Filter element testing standards include multiple international standards such as ISO 2941 to ISO 4572, involving filter element rupture resistance, structural integrity, material and liquid compatibility, end-to-end compliance test, fatigue characteristics determination, pressure difference flow characteristics and multiple pass method of filtration characteristics.

5. Main application areas: including filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment; separation and recovery of products and intermediate products in the petrochemical industry; purification of polyester melts in the textile industry; water treatment filtration in the electronics and pharmaceutical industries; lubrication systems and compressed air purification of mechanical processing equipment; lubricating oil and engine oil filtration for railway internal combustion engines and generators; hydraulic oil filtration for automobile engines, engineering machinery and ships; purification of lubrication systems, speed control systems, and bypass control system oils of gas turbines and boilers in thermal and nuclear power plants, etc.
