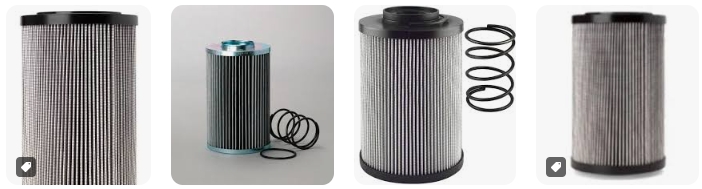

Function: Removes contaminants and debris from hydraulic fluid to prevent damage to system components and ensure smooth operation.
Detailed Specifications:
Overall Height: 213.5 mm (8.405 inches)
Largest Outer Diameter (OD): 130 mm (5.118 inches)
Largest End Inner Diameter: 64.5 mm (2.539 inches)
Gasket Inside Diameter: 63.09 mm (2.484 inches)
Length: 8.41 inch
Gasket Inside Diameter: 2.48 inch
Particle Size at Beta 75: 10 micron
Largest OD: 5.12 inch
Largest End ID: 2.54 inch
Particle Size at Beta 200: 12 micron
Flow Direction: Outside In
Inner Diameter Bottom: 66 mm
Inner Diameter Top: 62.5 mm
Outer Diameter Top: 130 mm
Backpressure Valve Opening Pressure: 17,500,000 Pa
Applicable Equipment and Industries:
Applicable Equipment: Cummins Filtration systems and other compatible hydraulic systems
Industries: Construction, agriculture, mining, and any industry that relies on hydraulic systems for machinery operation.
Packaging and Weight:
Net Weight: 2.38 pounds (1.08 kilograms)
Volume: 0.0044 cubic meters
Units per Pack: 1
Performance and Efficiency:
The HF35214 filter is designed to handle high flow rates and capture particles as small as 10 microns at a Beta ratio of 75, ensuring efficient filtration and system protection.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
