The following is the basic information of HF29051 hydraulic return oil filter:

Product Overview

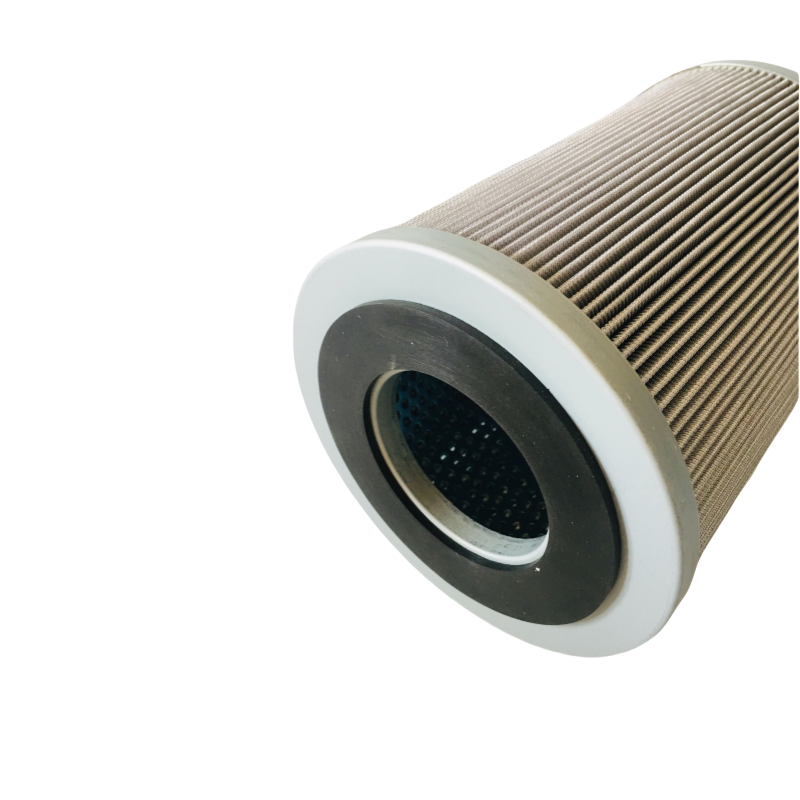

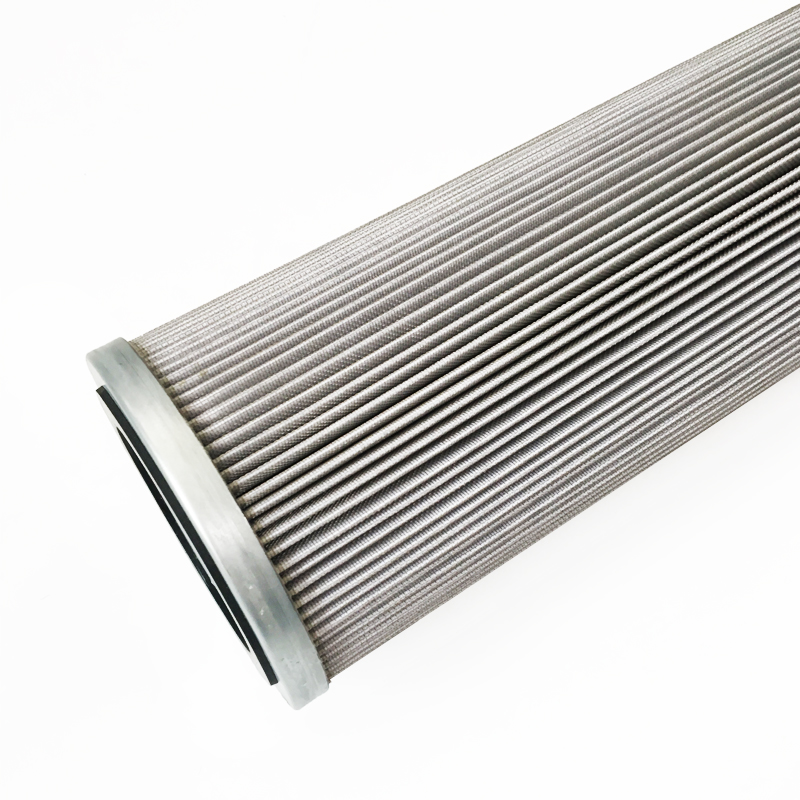

HF29051 hydraulic return oil filter is a filter element for hydraulic system, mainly used to filter impurities in hydraulic oil and prevent pollutants from entering the hydraulic system, thereby protecting hydraulic pumps, valves and other key components and extending the service life of equipment.

Technical Specifications

Filtering accuracy: 1-100 microns.

Filtering efficiency: up to 99.99%.

Dimensions:

Total height: 332 mm.

Outer diameter: 102.5 mm.

Inner diameter: 62 mm.

Working parameters:

Working pressure: up to 305 PSI.

Working temperature range: -13°F to 248°F.

Sealing material: Nitrile rubber.

Filter material: Glass fiber.

Flow direction: from outside to inside.

Scope of application

This filter is widely used in engineering machinery, hydraulic systems, excavators, mining equipment, generator sets and other fields.

Alternative models

Common alternative models for HF29051 include:

Baldwin: PT23582-MPG.

Filtrec: WG585.

Vogele: 9624531001.

Features

High temperature performance: Seals are tested for high temperature oil immersion to ensure they will not break or deform at high temperatures.

Corrosion resistance: High quality steel mesh is used to enhance corrosion resistance.

High efficiency filtration: Glass fiber filter media has good chemical resistance and high dust holding capacity.

Compact design: Suitable for compact spaces in modern hydraulic systems.
