Filter Type: Hydraulic Pressure Line Filter Cartridge
Media Type: Pleated Microglass
Detailed Specifications:
Overall Height: 12.96 inches (330mm)
Outside Diameter (OD): 3.12 inches (80mm)
Filter Precision: 6μm
Filter Length: 328mm
Seal Ring Material: Fluor rubber (FKM)
Filter Media: Glass fiber, wood pulp paper, metal mesh, etc. (various materials are used based on different precision requirements)
Normal Working Pressure (MAX): 0.6 to 32Mpa
Working Media: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol
Working Temperature: -30°C to +110°C
Applicable Equipment and Industries:
Applicable Equipment: Various hydraulic systems in industrial machinery, including steel mills, oil refineries, chemical plants, and construction equipment.
Industries: Metallurgy, petrochemical, textile, electronics and pharmaceuticals, power generation (thermal and nuclear), mechanical processing equipment, railway internal combustion engines and generators, automotive engines, and construction machinery.
Performance and Efficiency:

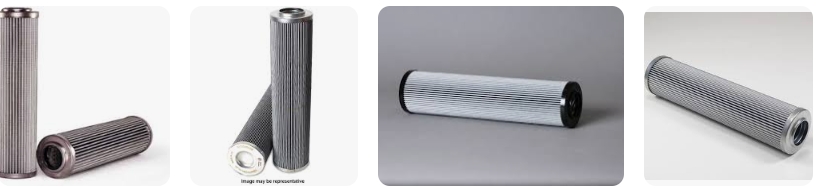

The HC9600FKN13Z filter element is designed to remove solid particles and gelatinous substances from the working medium, effectively controlling the contamination level of the working medium. It is a domestically produced alternative to imported equipment filters and can fully replace Pall filters.
Similar Models:
HC9600FCN13H
HC9600FCN13HX321
HC9600FCN13Z
HC9600FCN16Z
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
