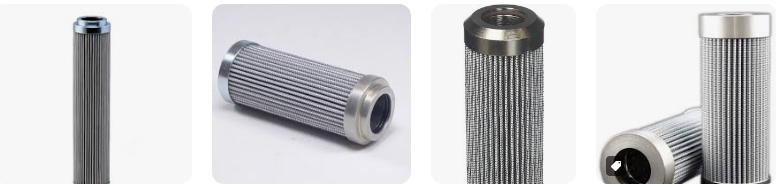

Replacement Filter Element for Pall HC9021FDT4Z
Replacement Filter Element for Pall HC9021FDT4Z
Product Information:
- Part Number: HC9021FDT4Z
- Description: This is a high-pressure filter element designed for use in hydraulic and lubricating oil systems, providing consistent and high-level fluid system protection across all applications.
Technical Specifications:
- Flow Rate: Capable of flows up to 75 lpm (20 US gpm).
- Pressure Ratings: Designed to handle pressures up to 207 bar (3000 psi).
- Port Size: The filter housing features a ¾” port.
- Fatigue Pressure Rating: 124 bar (1800 psi) for R length and 103 bar (1500 psi) for S length, according to NFPA T2.6.1 R2-2001 Cat C/90.
- Burst Pressure: Typical burst pressure is 1,035 bar (15,000 psi).
- Collapse Pressure: 207 bar (3000 psid) for the 9601 Series.
- Fluid Compatibility: Compatible with all petroleum oils and most water glycols, water-oil emulsions, and synthetic hydraulic and lubricating fluids.
- Temperature Range: Operable from -29˚C to 107˚C (-20˚F to 225˚F), with a maximum of 60˚C (140˚F) in HWCF or water glycols.
- Bypass Valve Setting: Non-bypass.
- Indicator Pressure Setting: 7 bar (100 psid).
- Housing Materials: Constructed with an aluminum head and bowl.
Performance Ratings:
- Filter Efficiency: BetaX(C)>2000 based on ISO 16889.
- Length Options: Available in 4” and 8” nominal lengths.
Ordering Information:
- When ordering, select one complete part number from each section: Housing, Element, and Differential Pressure Indicator.
- The housing part number indicates that the indicator port is fitted with a plastic shipping plug.
- The element part number includes the code for the filter performance ratings and length options.
- If no Differential Pressure Indicator is selected, a ‘B’ type blanking plug must be ordered separately.
Dimensional Drawings:
- The provided datasheet includes detailed dimensional drawings for the filter housing and elements, which are essential for installation and design compatibility.
This information provides a comprehensive overview of the HC9021FDT4Z filter element, including its specifications, features, and ordering details. It is important to verify the compatibility of the filter with your specific equipment before making a purchase.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
