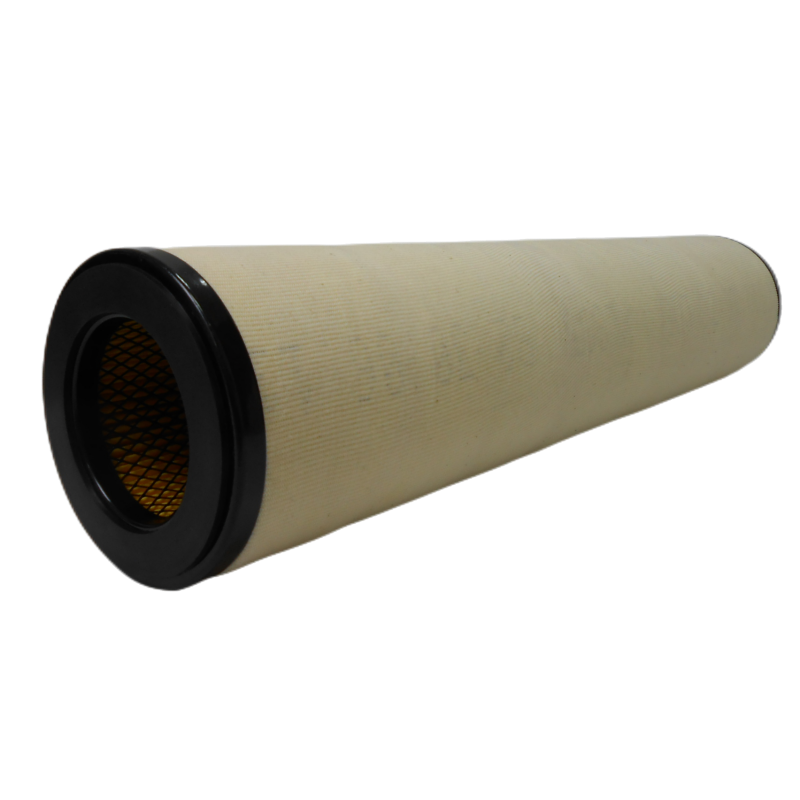

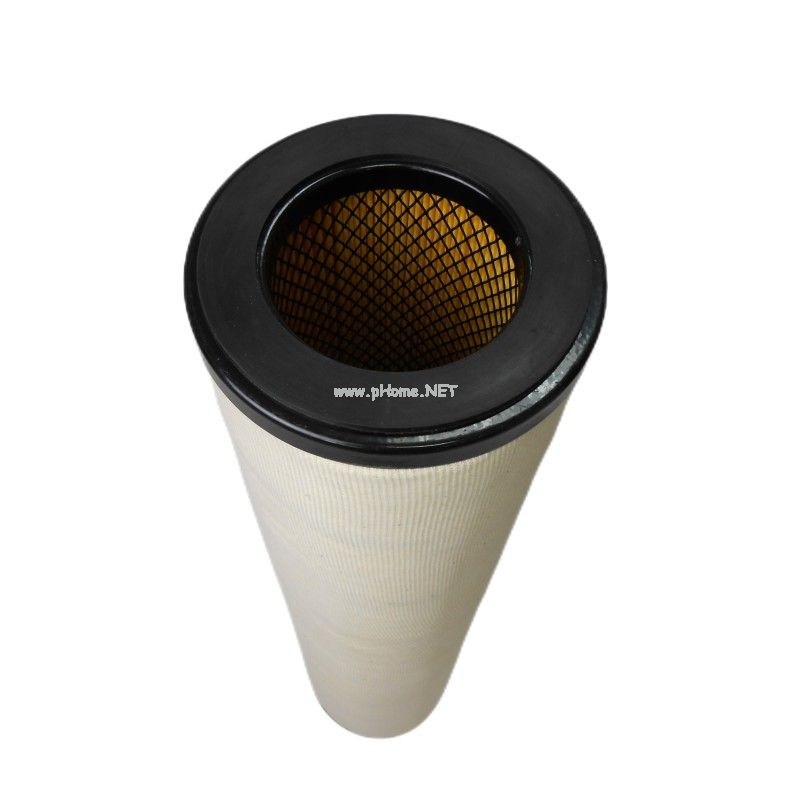

HC628-01-CSP,CEG2442 Polymerization Filter Element









1. Product Description:

 HC628-01-CSP is made of many kinds of composite materials through a special process and has hydrophilic properties. It not only filters mechanical impurities in the medium, but also breaks the emulsion and agglomerates the emulsified water in the medium, separates it and aggregates it into larger water droplets for further purification of the medium .


2. Scope of Application:

 - Oil-water separation.

 - Removal of water and alkali from on-line analytical sampling systems.

 - Separation of water from hydrogen peroxide working solution and separation of hydrogen peroxide working solution from hydrogen peroxide .


3. Technical Parameters:

 - Filter cartridge media: fiberglass.

 - End cap material: galvanized steel.

 - Outer diameter: 6 inches.

 - Length: 28 inches.

 - Filtration accuracy: 1 micron.

 - Features extended aggregator life, reduced particle concentration to meet fluid specifications, reduced liquid/liquid emulsion stability, etc .



4. Product Features:

 - The same quality and performance as the original element can be guaranteed.

- Temperature range: -4°F to 212°F.

 - SEAL MATERIAL: Buna-N and Viton for corrosive fluids.

   - Pressure resistance: Hydraulic fluid filtration crash pressure ratings from 21 bar to 210bar.

  - Filtration accuracy options: 3, 5, 10, 20 and 50 microns.

  - Filtration media: glass fiber, filter paper, stainless steel sintered fiber and stainless steel wire mesh.

 - Fluid compatibility: with all petroleum based oils, water glycols, oil/water emulsions, high water content fluids and synthetic fluids compatible with Viton or EPR seals .



5. Service Commitment:

  - Provide pre-sale service with the best product price and patient answers to product related questions.

- Test all cartridge elements before shipment and provide the latest cargo transportation conditions until the customer receives the product.

- Provide technical consultant service and new products if there are quality problems with the products .

6. Packaging and Transportation:

   - Internal plastic bag packing; external cardboard box; wooden box for transportation.

   - Provide sea and air transportation according to customers' requirements.

   - Arrange the port of shipment according to customers' requirements.


7. Testing Standards:
Follow ISO standards, including but not limited to ISO 2941 (Test Method for Rupture Resistance of Filter Element), ISO 2942 (Test Method for Structural Integrity of Hydraulic Filter Element), ISO 2943 (Test Method for Compatibility of Hydraulic Filter Element Material and Liquid), etc


8 Main Application Areas:
Widely used in petrochemical, textile, thermal power and nuclear power, shipbuilding, glass manufacturing, electronic precision processing, fiber processing and as precision filters for air compressors and pipeline filters.


9. Product Features:
Hydrophilic, capable of filtering mechanical impurities, but also able to realize the emulsification of emulsified water in the medium and polymerization, so that it can be separated into larger water droplets for further purification.
