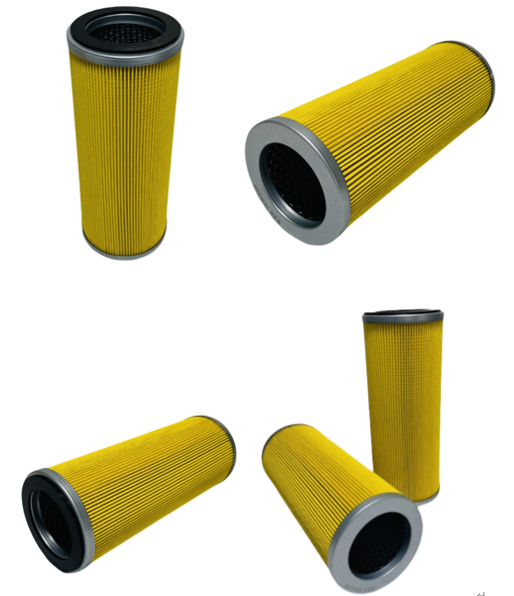

FR16-010P Hydraulic return oil filter element industrial equipment
Filter Type: Return Line Filter, 1MPa FR type
Connection Method: The filter has a connection method suitable for various fluid types, including general mineral oil (no marking), water-glycol system (W), and ester-based systems (F, QE).
Model: FR16-010P12F
Features:
Compact and lightweight compared to previous VLM models.
Simple internal structure with low flow resistance.
Bypass mechanism for enhanced safety.
Clogging detector can be installed as an option.
Can be mounted on the top of the tank.
Case mounting flange is available as an option.
Maximum Operating Pressure: 1MPa
Test Pressure: 1.5MPa
Material Changes for Non-Mineral Oils: If using fluids other than mineral oil, materials such as packing and O-rings may change. For ester-based systems, O-rings and packing are made of buna (nitrile).
Element Size Indicator: The series number indicates the size of the filter element, ranging from 06 to 24.
Element Precision: The precision of the filter element is indicated in microns, ranging from 003 to 400.
Element Material: P (Paper) and SW (Stainless Steel Mesh).
Inlet Port Size: The filter has different inlet port sizes, such as 08 RC1, 3/4, and 10 RC1 1/4, 1 1/2.
Optional Accessories: Clogging detector (S) and electrical contact detector (E) are available as options.
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
