Filter Precision: The filter precision of backflush oil filters ranges widely, from 1 micron to 3000 microns, depending on the type and design of the filter element.

Working Pressure: The working pressure can reach up to 1.0 MPa to 1.6 MPa, depending on the design and application scenario of the filter.

Operating Temperature: The maximum allowable operating temperature for backflush oil filters can reach up to 90°C.

Flow Capacity: The flow rate range for a single unit is from 4 cubic meters per hour to 4160 cubic meters per hour, depending on the specifications and design of the filter.

Structural Strength: The structural strength ranges from 1.0 MPa to 21.0 MPa to meet different working pressure requirements.

Working Medium: Generally, hydraulic oil, ester hydraulic oil, emulsion, water-glycol, etc.

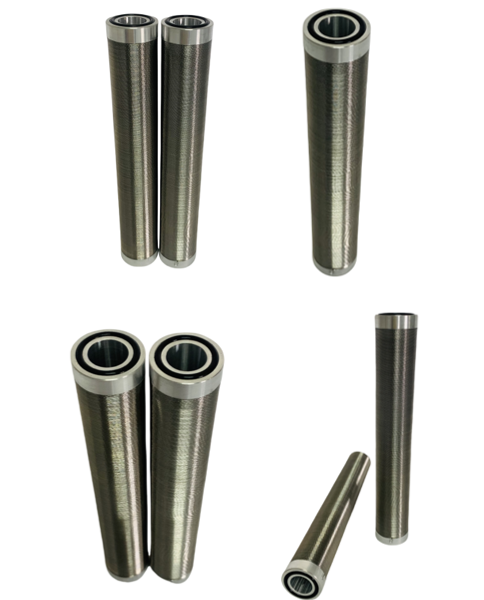

Filter Element Material: The filter element material is usually stainless steel to ensure corrosion resistance and heat resistance.

External Anti-corrosion Protection: May include two layers of primer, RAL9006 silver-gray metallic finish.

Internal Anti-corrosion Protection: May include a two-component epoxy coating or rubber lining.

Pressure Chamber Material for Differential Pressure Gauge: May include aluminum, stainless steel, or copper-zinc alloy.
