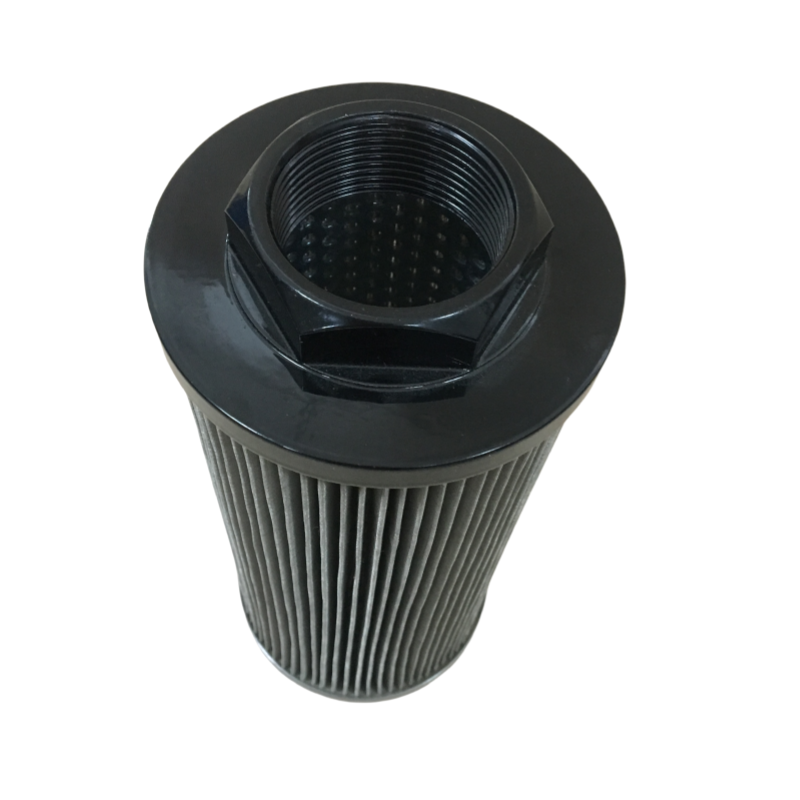

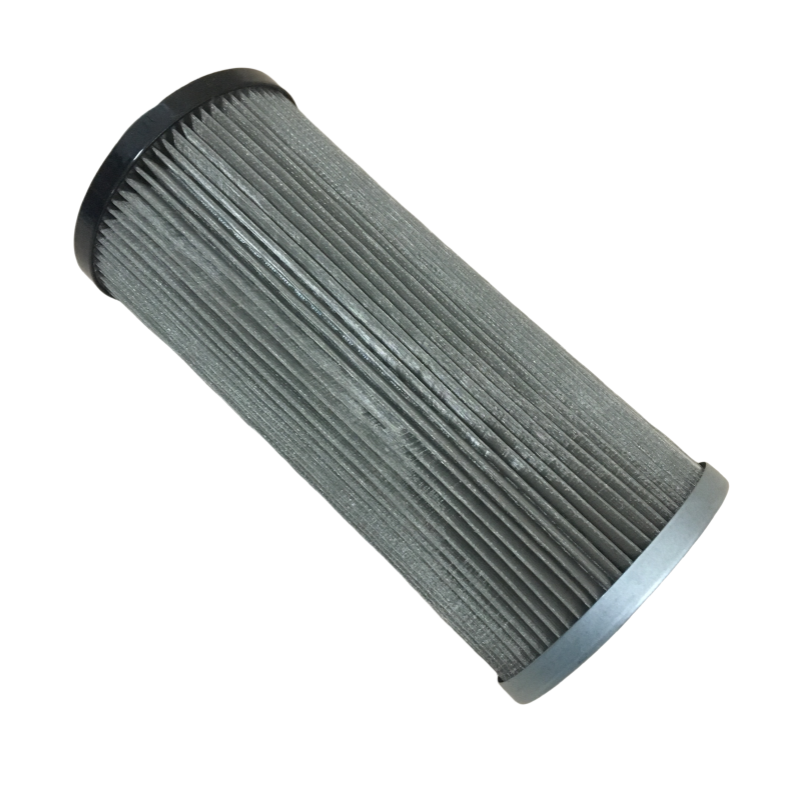

The basic information of EMS series oil suction filter is as follows:

1. Application and performance:

- EMS series oil suction filter is mainly used for oil suction filtration, used to filter out solid particles and colloidal substances in the working medium, and effectively control the contamination of the working medium. They are usually installed in the oil tank and must be installed below the oil tank liquid level.

- The filter material of the filter element is made of stainless steel woven mesh or copper mesh, which can be cleaned and used repeatedly.

2. Working temperature:

- The working temperature range of EMS series oil suction filter can be up to 100°C.

3. Filter material:

- The filter material includes glass fiber, wire mesh and paper.

4. Filter rating:

- The filter rating is 3 μm to 200 μm.

5. Filter efficiency:

- The filter efficiency reaches 99.99%.

6. Interface size:

- The interface size ranges from Ø 48.5 mm to Ø 154.5 mm.

7. Flow rate:

- The flow rate can reach 1400 l/min.

8. Filter element pressure difference:

- The filter element pressure difference is 1 bar.

9. Sealing material:

- The sealing material is nitrile rubber or fluororubber, suitable for a temperature range of -10°C to 100°C.

10. Material compatibility:

- Suitable for media such as mineral oil, emulsion, water-glycol, etc.
