Basic Information of Gas Turbine Actuator Filters CB13300002V and CB13299002V

 Product Overview

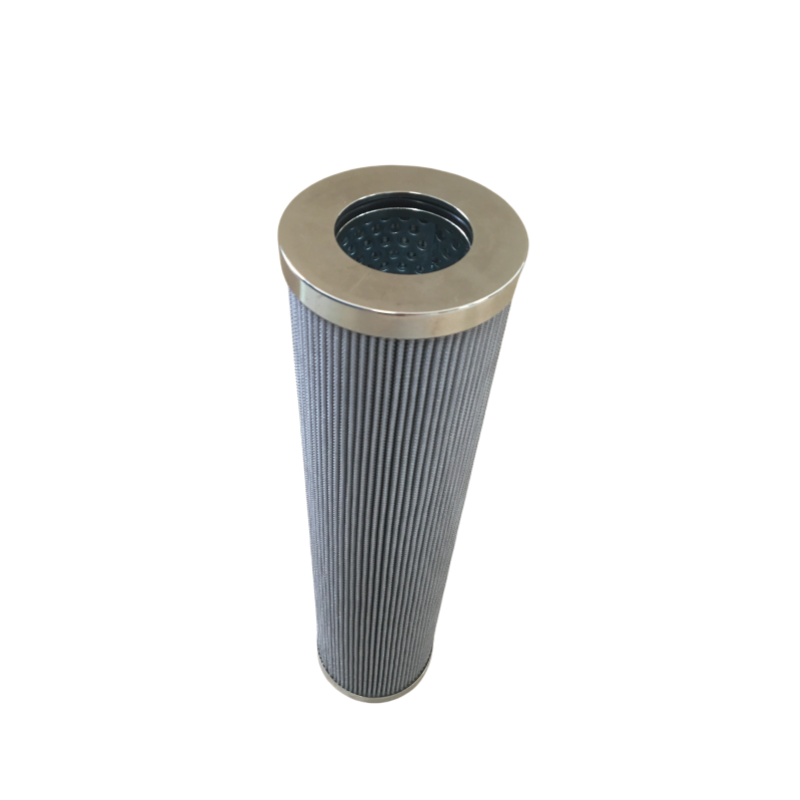

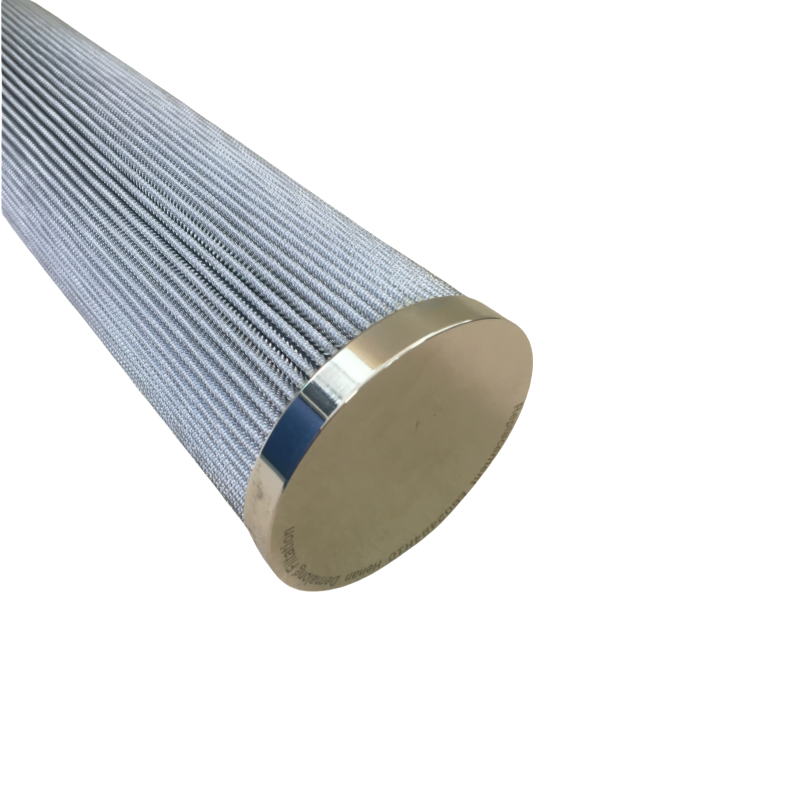

The CB13300002V and CB13299002V filter elements are designed for use in gas turbine bypass systems and fuel shutoff valve applications. These filters play a crucial role in removing impurities and contaminants from the hydraulic oil, ensuring the smooth operation of the turbine's actuator systems.

 Technical Specifications

 Filter Materials: Stainless steel mesh, glass fiber, or oil paper.

 Filtration Accuracy:

   CB13300002V: 125 microns.

   CB13299002V: 2 microns.

 Operating Pressure: Up to 210 bar.

 Operating Temperature: 30°C to 120°C.

 Flow Rate: Varies based on the system requirements, typically suitable for industrial hydraulic systems.

 Sealing Materials: NBR or fluoro rubber.

 Applications

 Gas Turbine Systems: Used in the bypass system and fuel shutoff valve applications to ensure clean oil supply.

 Industrial Hydraulics: Suitable for various industrial hydraulic systems where high filtration efficiency is required.

 Power Plants: Widely used in power generation systems to protect servo valves and extend the life of hydraulic components.

 Features and Benefits

 High Filtration Efficiency: Removes fine particles and contaminants, ensuring system reliability.

 Durability: Made from highquality materials to withstand harsh operating conditions.

 Compatibility: Designed as replacements for Moog hydraulic filter elements, ensuring compatibility with existing systems.

 Extended Service Life: Highquality filter media and construction materials help extend the service life of the filter.

 Testing Standards

These filter elements comply with several international standards, including:

 ISO 2941: Filter burst test.

 ISO 2942: Structural integrity test.

 ISO 2943: Material compatibility test.

 ISO 3723: End load compliance test.

 ISO 3724: Fatigue characteristic determination.

 ISO 3968: Differential pressure and flow characteristics.

 ISO 4572: Multiplepass test for filtration characteristics.

 Maintenance and Replacement

 Replacement Frequency: It is recommended to replace the filter elements every 4 months or based on the system's differential pressure indication.

 Precautions: Ensure the hydraulic system is cleaned before installing a new filter to prevent contamination.
