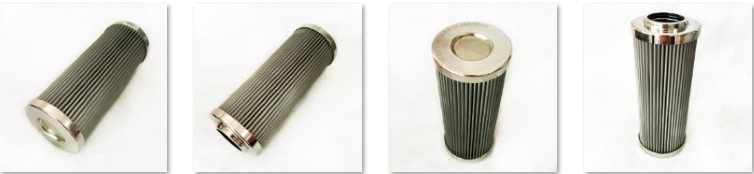

Filter Model: BH406206560

Description: This filter element is designed for high-efficiency filtration, ensuring the removal of suspended particles from various liquids. It is engineered to meet the demands of industries requiring clean and pure process fluids.

Dimensions and Specifications:

• Outer Diameter: Φ68mm or Φ69mm
• Inner Diameter: Φ32mm
• Length: Available in sizes from 2.5″ to 40″
• Seal Material: Silicone rubber, EPDM rubber, nitrile rubber, fluororubber, or fluororubber wrapped with Teflon.

Filter Precision: 0.1, 0.2, 0.45, 1.00, 3.00, 5.00, 10.0, 20.0, 40.0, 50.0µm

Effective Filtration Area: ≥0.55m²

Operating Conditions:

• PH Value: 1～14
• Normal Operating Temperature: ≤55℃
• Working Temperature: 80℃, △P≤0.10Mpa
• Pressure Differential: At 25℃, forward 0.42Mpa, reverse 0.21MPa

Applications: This filter element is suitable for a wide range of applications due to its chemical compatibility and filtering capabilities. It is commonly used in the chemical, pharmaceutical, energy, environmental protection, and water treatment industries for various media filtration and purification processes.

Compatible Equipment and Industries:

• Chemical Industry: For the filtration of chemicals and solvents.
• Pharmaceutical Industry: For the clarification of oral liquids and pre-filtration of bacterial preparations.
• Food Industry: For the clarification of beverages, water, fruit juices, and other food additives.
• Environmental Protection: For the filtration of wastewater and water treatment processes.
