Drilling Rig Filter Hydraulic Filter Bg01499918 Bg01499917

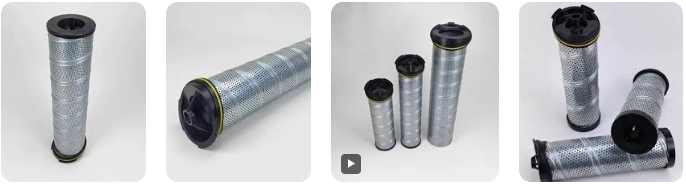

Filter Cartridge Model: BG01499918

Specifications:

• Type: Brake System Return Oil Filter Cartridge
• Material: Glass Fiber
• Filter Form: Pleated Cartridge
• Purpose: Oil Decontamination
• Working Temperature: -30°C to +110°C
• Maximum Working Pressure: 21bar to 210bar
• Sealing Material: Fluorine Rubber, Nitrile Rubber
• Filter Ratio: X≧100
• Structural Strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa
• Working Medium: Acid Ester Hydraulic Oil, Emulsion, Water-Ethylene Glycol
• Inlet and Outlet Diameter: 36mm
• Original Pressure Difference: 0.5MPa
• Filter Precision: 10μm

Applications:

• Applicable Equipment: Various industrial machinery with hydraulic systems, particularly in mining and construction equipment.
• Industries: Metallurgy, Petrochemical, Textile, Electronics, Pharmaceuticals, and Power Generation (Thermal and Nuclear)

Features:

• The BG01499918 filter cartridge is designed for high filtration precision and large oil flow capacity with minimal initial pressure loss and high dirt-holding capacity.
• It is used in the return oil filter of brake hydraulic systems in mining machinery and construction equipment to prevent impurities such as wear particles and rubber particles from re-entering the oil tank.
• The cartridge is tested according to ISO standards including ISO2491, ISO2492, ISO2493, ISO3723, ISO3724, and ISO3968, ensuring its structural integrity, material compatibility with liquids, and performance under pressure.

Similar Models:

• For customers seeking alternative or additional filter cartridges, consider the following models that may have similar specifications and applications:
  • Model 1097287: A variant with potentially similar filtration performance.
  • Model 41267512: Another alternative with similar filtration capabilities.
