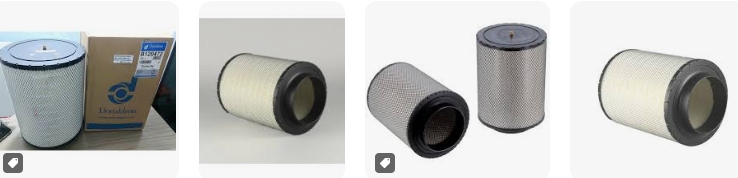

Product Information for Filter Element B120472

Description: The B120472 is a critical component in the pipeline series for fluid transportation, typically installed at the inlet end of hydraulic systems to filter out solid particles and impurities from the fluid medium, protecting the normal operation of the equipment. When the fluid enters the filter, impurities are blocked, and the clean filtrate is discharged from the filter outlet. For cleaning, simply remove the filter element from the filter, treat it with industrial liquids, and reinstall it. This filter is used for hydraulic and lubrication systems' pressure oil filtration to remove contaminants from the system and ensure normal operation.

Technical Specifications:

• Model: B120472
• Filter Precision: 1 to 100μm
• Maximum Working Pressure: 21bar to 210bar
• Working Media: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol
• Operating Temperature: -30℃ to +110℃

Performance Features:

1. Convenient for sludge discharge, large flow area, low pressure loss, simple structure, small volume, light weight, and uniform filtering material.
2. The filter material is compatible with general hydraulic oil filtration.
3. The filter element is supported by solid filter materials on both sides and has strong stability, complying with the ISO3724/76 verification of hydraulic filter element fatigue characteristics.

Applications:

1. Mechanical processing equipment: Papermaking machinery, mining machinery, injection molding machines, and large precision machinery's lubrication systems and compressed air purification, as well as dust recovery filtration in tobacco processing equipment and spray equipment.
2. Railway internal combustion engines and generators: Filtration of lubricating oil and engine oil.
3. Automotive engines and construction machinery: Air filters, engine oil filters, fuel filters, various hydraulic oil filters, diesel filters, and water filters for construction machinery, ships, and heavy vehicles.

Additional Recommended Models:

• P558792, P559000, P559100, P559418, P559550, P559740, P559803, P559850, P560527, P560971, P601881, P601882, P601883, P601884, P601885, P601886, P601887, P601889, P601903, P601909, P601912, P601920, P601924, P601925, P601928, P601929, P601930, P601932, P601933, P601934, P601935, P601936, P601938, P601942, P601943, P601946, P601947, P601975, P601979, P601980, P604197, P604273, P605022

Please note that the technical specifications and applications provided are based on the general use of this type of filter element in hydraulic systems. For specific dimensions and detailed technical assistance, it is recommended to consult with technical specialists or the manufacturer's guidelines. This information is intended to assist in the selection and application of the B120472 filter element, ensuring it meets the specific needs of various hydraulic systems and industrial applications
