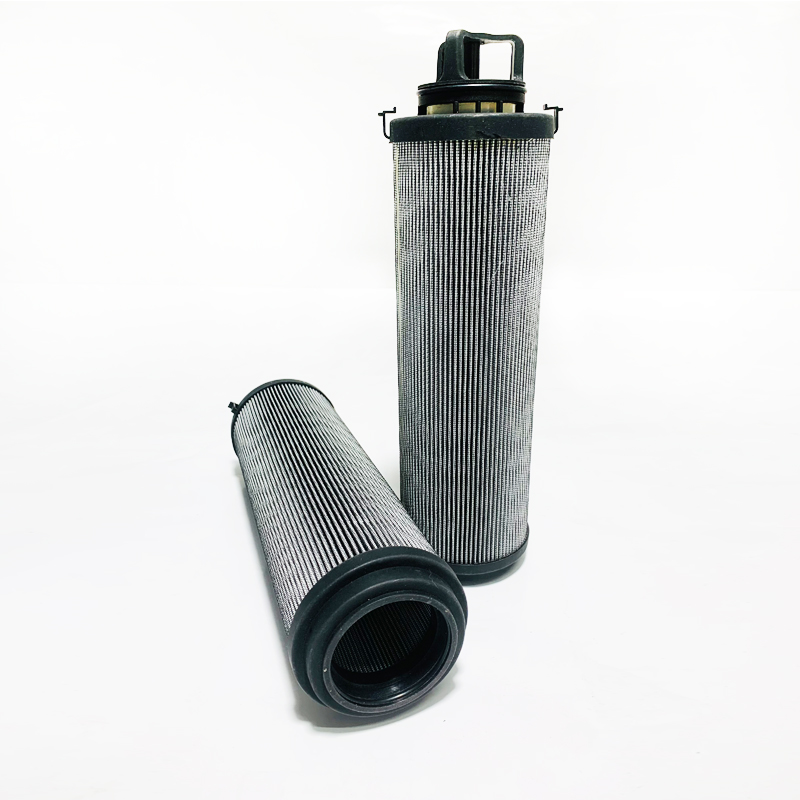

941040Q Hydraulic oil filter

 Product Overview

941040Q is a high-efficiency filter element for hydraulic systems, mainly used to filter solid particles and colloidal substances in hydraulic oil, effectively controlling the contamination of hydraulic oil.

 Technical Specifications

- Filter element model: 941040Q

- Filter material: high-quality glass fiber

- Filter accuracy: 10 microns

- Filter ratio: X≥100

- Working pressure: 2.1 MPa

- Sealing material: Nitrile rubber

- Opening form: double opening

- Working temperature range: -30°C to +110°C

 Features

- High filtration efficiency: effectively removes metal particles and colloidal substances in hydraulic oil.

- Large dirt holding capacity: long service life and reduced replacement frequency.

- Low initial pressure difference: ensure smooth operation of the hydraulic system.

- High structural integrity: Passed the standard ISO2942:2004 test many times to ensure that the accuracy is consistent with the actual accuracy level.

 Application range

941040Q hydraulic oil filter element is widely used in the following fields:

- Hydraulic system

- Engineering machinery

- Industrial equipment

- Power station

 Maintenance recommendation

- Regular replacement: It is recommended to replace according to the system operation time and pressure difference indication.

- Pressure difference monitoring: When the filter element is contaminated and blocked to the inlet and outlet pressure difference of 0.5 MPa, the filter element should be replaced.
