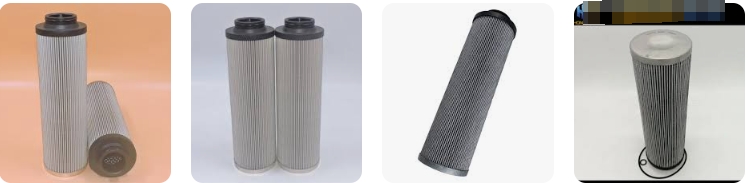

Hydraulic Filter Element (923976.2805) for Kalmar Harbor replace


The 923976.2805 is a hydraulic filter element designed for use in hydraulic systems, particularly in heavy machinery such as port cranes and construction equipment. This filter element is engineered to remove contaminants from hydraulic oils, ensuring the reliability and longevity of hydraulic systems.

Technical Specifications:

• Total Height (Overall Height): 319.1mm
• Outer Diameter (OD): 93.7mm
• Inner Diameter (ID): 44.4mm
• Filter Precision: 0.1-1.0um
• Burst Pressure: 0.25MPa
• Maximum Operating Temperature: 130°C
• Application: Hydraulic filter element for tunnel boring machines, port cranes, and other heavy machinery

Benefits:

• Effectively removes solid particles and gelatinous substances from the hydraulic oil
• Controls the level of contamination in the working medium, protecting the normal operation of mechanical equipment
• Commonly installed in the suction oil line, pressure oil line, return oil line, bypass, and standalone filtration systems

Applications: The 923976.2805 filter element is used in a variety of hydraulic systems where the removal of solid contaminants is critical. This includes工程机械, cranes, material handling machinery, agricultural machinery, and excavating machinery. It is particularly suited for equipment such as port cranes, winches, and other heavy machinery that requires high pressure and temperature resistance in its hydraulic systems.

Industry Applications: This filter element is widely used in industries that rely on heavy machinery, including construction, port operations, mining, and manufacturing. It plays a vital role in maintaining the efficiency and safety of equipment used in these sectors.

Similar Models: For customers seeking alternative or replacement models, the following are considered equivalent or similar based on cross-references:

• G04284
• PT23081-MPG
• SH 51216
• HY19225

When selecting a replacement or similar model, it is important to ensure that the specifications match the existing system to maintain optimal performance and filtration efficiency. The 923976.2805 filter element is a reliable choice for ensuring the cleanliness and performance of hydraulic oils in various industrial applications.
