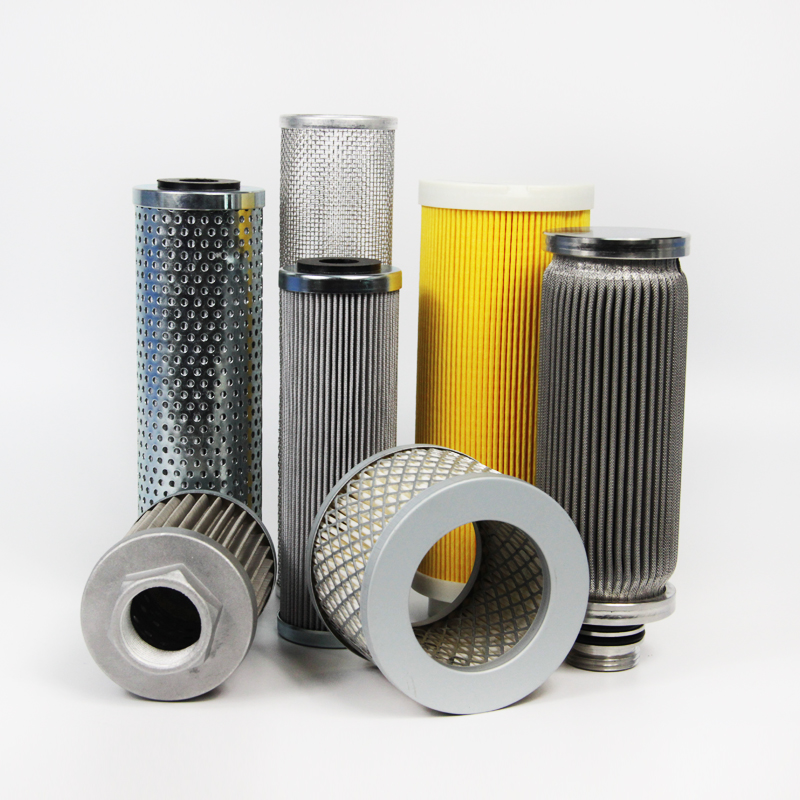

The basic information of injection molding machine filter elements 7680064, 5021687 and 709053 are as follows:

 Product use

These filter elements are mainly used in the hydraulic oil system of injection molding machines. They can continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system.

 Technical parameters

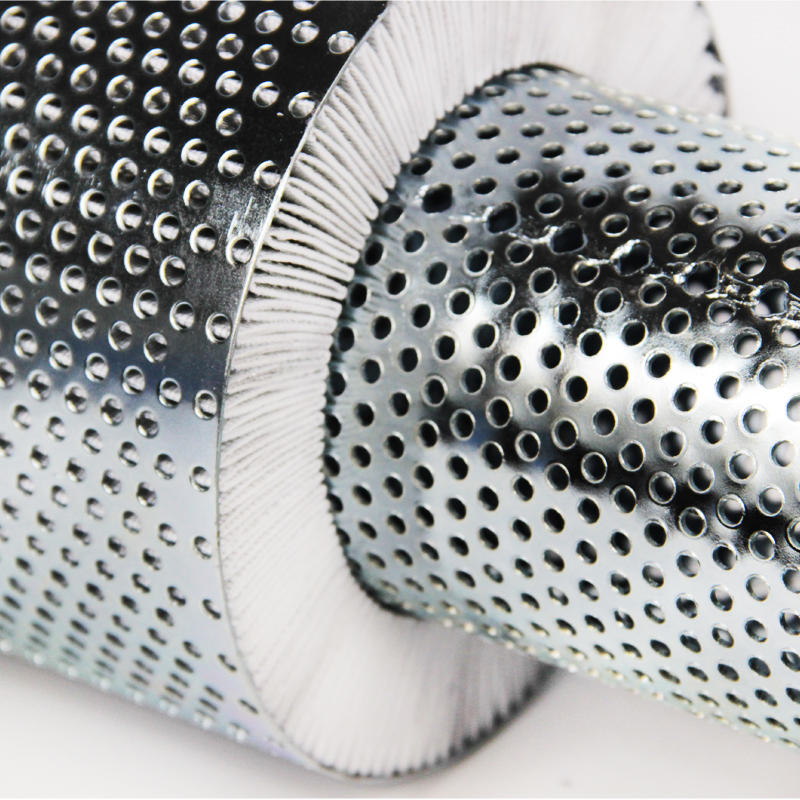

Filter element filter material: glass fiber, filter paper, metal mesh, metal powder, metal sintering, sintered felt, etc.

Filter accuracy:

Glass fiber filter material: 1-70μm.

Metal mesh filter material: 3-400μm.

Filter paper filter material: 5-40μm.

Rated flow: 6~9100 L/min.

Working pressure: ≤450 kg.

Working temperature: -30~120℃.

 Performance characteristics

Large dirt holding capacity: High-quality imported filter materials are selected, and the quality of the particle pollution that the filter material can accommodate per unit area is high and the service life is long.

Stable filtration accuracy: Advanced processing technology reduces the damage of the filter material due to mechanical force during the folding process, thereby causing filtration failure.

High structural integrity: The filter element has passed the standard ISO2942:2004 test many times, and the initial bubbling point of the filter element has not decreased, and there are no structural defects that affect the evaluation results of its filtration accuracy.

Strict factory inspection: The raw materials, semi-finished products, and finished products have a complete and strict product factory inspection process, and the factory products are subject to 100% full inspection.

 Testing standards

ISO 2941: Test method for filter element rupture resistance.

ISO 2942: Test method for structural integrity of hydraulic filter elements.

ISO 2943: Test method for compatibility of hydraulic filter element materials and liquids.

ISO 3723: End-to-end compliance test of filter elements

ISO 3724: Determination of filter element fatigue characteristics.

ISO 3968: Differential pressure flow characteristics of filter elements.

ISO 4572: Multiple pass method for determining filtration characteristics of filter elements.

ISO 16889: Filtration ratio/pollution holding capacity.

 Application areas

These filter elements are widely used in the following fields:

Power plants, steel mills, shield tunneling, mining, papermaking, petroleum, shipbuilding, chemical industry, textile, various power machinery and other industries.

Filtration of hydraulic systems and filtration of various lubrication equipment.

Petrochemical, electronics, pharmaceuticals, mechanical processing equipment, railway internal combustion engines, automobile engines, thermal power and nuclear power, etc.
