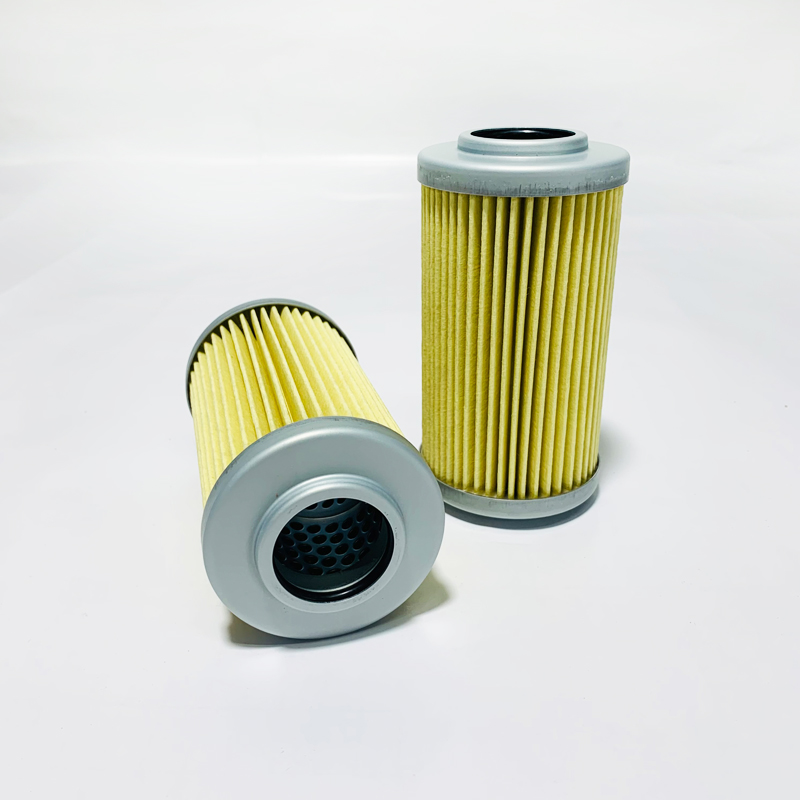

Basic information of 629206 hydraulic oil filter element

 Product overview

629206 is an oil suction filter element for hydraulic system, which is mainly used to filter impurities and pollutants in hydraulic oil to ensure the normal operation of hydraulic system.

 Technical specifications

- Filtration accuracy: 1-70 microns (glass fiber filter material).

- Working pressure: ≤450 kg.

- Working temperature: -30°C to 120°C.

- Rated flow: 6-9100 L/min.

- Filter material: glass fiber, filter paper, metal mesh, metal powder, metal sintering, etc.

- Testing standard:

- ISO 2941: Filter element rupture resistance test.

- ISO 2942: Hydraulic filter element structural integrity test.

- ISO 2943: Hydraulic filter element material and liquid compatibility test.

- ISO 3723: Filter element end-to-end compliance test.

- ISO 3724: Determination of filter element fatigue characteristics.

- ISO 3968: Pressure differential flow characteristics of filter elements.

- ISO 4572: Multiple pass method for determining filtration characteristics of filter elements.

 Application range

- Industry application:

- Steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, mechanical processing.

- Hydraulic oil filtration for automobile engines, engineering machinery, ships, and trucks.

- Thermal power and nuclear power: Purification of oil in lubrication systems, speed control systems, and bypass control systems of gas turbines and boilers.

- Specific uses:

- Used for filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

- Petrochemical industry: Separation and recovery of products and intermediate products in oil refining and chemical production processes.

- Textile industry: Purification and uniform filtration of polyester melt during wire drawing.

- Electronics and pharmaceuticals: Pretreatment filtration of reverse osmosis water and deionized water.

 Features

- High dirt holding capacity: Select high-quality imported filter materials, the quality of particle pollution that the filter material can accommodate per unit area is high, and the service life is long.

- Stable filtration accuracy: Advanced processing technology reduces the damage of filter materials due to mechanical force during folding processing, thereby ensuring stable filtration accuracy.

- High structural integrity: The filter element has passed the standard ISO2942:2004 test many times, and there are no structural defects that affect the evaluation results of its filtration accuracy.

- Strict factory inspection: The complete and strict product factory inspection process for raw materials, semi-finished products and finished products ensures worry-free product quality when leaving the factory.
