Product Model: 40050800128 Size Parameters:

• Filtration Precision: 5～20μm
• Working Pressure (MAX): 21MPa
• Working Medium: General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol
• Operating Temperature: -30℃～+110℃

Suitable Equipment: Hydraulic systems

Applicable Industries: Construction, mining, manufacturing, agricultural machinery, forestry machinery, road construction, civil engineering, railway construction, airport construction, port construction, oil and gas extraction, energy industry, etc.

Product Features:

• Designed for hydraulic systems to effectively remove solid particles and colloidal substances from the working medium, controlling the contamination level of the working medium.
• Directly installed in the oil tank, simplifying the system's piping, saving space, and making the system layout more compact.
• Equipped with a self-sealing valve, preventing oil from flowing back when the system is being serviced.
• When replacing the filter element, it can bring out the contaminants inside the filter element, preventing oil from flowing out of the tank.
• Equipped with a bypass valve that automatically opens when the filter element is blocked by contaminants causing a pressure difference of 0.35MPa, protecting the system from normal operation.
• With a magnetic device, it can filter out ferromagnetic particles larger than 1μm in the return oil.

Related Models: Due to the lack of specific related models provided in the search results, it is recommended to determine according to the recommendations of the equipment manufacturer or the filter element's cross-reference list.

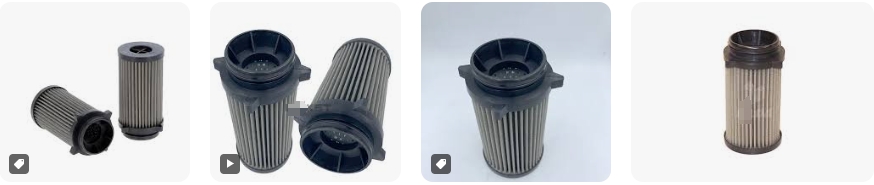

Product Description: The filter element 40050800128 is a high-pressure oil filter designed for the oil circuit in hydraulic systems to remove metal powders and other mechanical impurities worn by components in the system, keeping the oil circuit clean and extending the service life of the hydraulic system. This filter element has high-precision filtration performance, can work stably under high pressure, and is equipped with features such as self-sealing valve, bypass valve, and magnetic device to improve system safety and convenience of maintenance. Due to its high filtration performance and durability, it is widely used in various industries.
