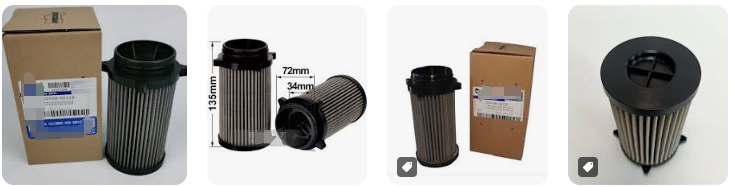

Product Model: 40050800128 Size Parameters:

• Dimensions (L×W×H): 20cm × 14cm × 14cm
• Weight: 1.5 kg
• Filtration Precision: 5～20μm
• Working Pressure (MAX): 21MPa
• Operating Temperature: -30℃～+110℃

Suitable Equipment:

• For the fuel system of construction machinery such as Doosan DX200A excavators.
• Heavy-duty hydraulic oil filter suitable for various hydraulic systems.

Applicable Industries:

• Building materials stores, repair shops, construction sites.
• Suitable for tailoring shops, production workshops, food and beverage processing plants, energy and mineral resources, advertising companies, etc.

Product Features:

• Effectively removes solid particles and colloidal substances from hydraulic oil or fuel oil.
• Made of imported Ahlstrom filter paper to ensure a filtration efficiency of 99.99%.
• High structural strength, able to withstand pressures up to 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa.
• Designed with a self-sealing valve to prevent oil from the fuel tank from flowing back during system maintenance.
• Equipped with a bypass valve that automatically opens when the filter element is blocked and the pressure difference reaches 0.35MPa, protecting the system from normal operation.
• With a magnetic device, it can filter out ferromagnetic particles larger than 1μm in the return oil.

Related Models: Models that may be compatible with 40050800128 include but are not limited to other hydraulic oil filter element models, which should be determined according to the recommendations of the equipment manufacturer or the filter element's cross-reference list.

Product Description: The filter element 40050800128 is a high-pressure oil filter designed for hydraulic and fuel systems, effectively removing solid particles and colloidal substances from the oil. This filter element is made of high-quality imported filter paper materials and has a filtration efficiency of up to 99.99%. It features high structural strength, good pressure resistance, and a wide operating temperature range. In addition, it has a self-sealing valve, a bypass valve, and a magnetic device to improve system safety and maintenance convenience. Due to its high filtration performance and durability, it is widely used in various industries such as construction machinery, construction, mining, etc.
