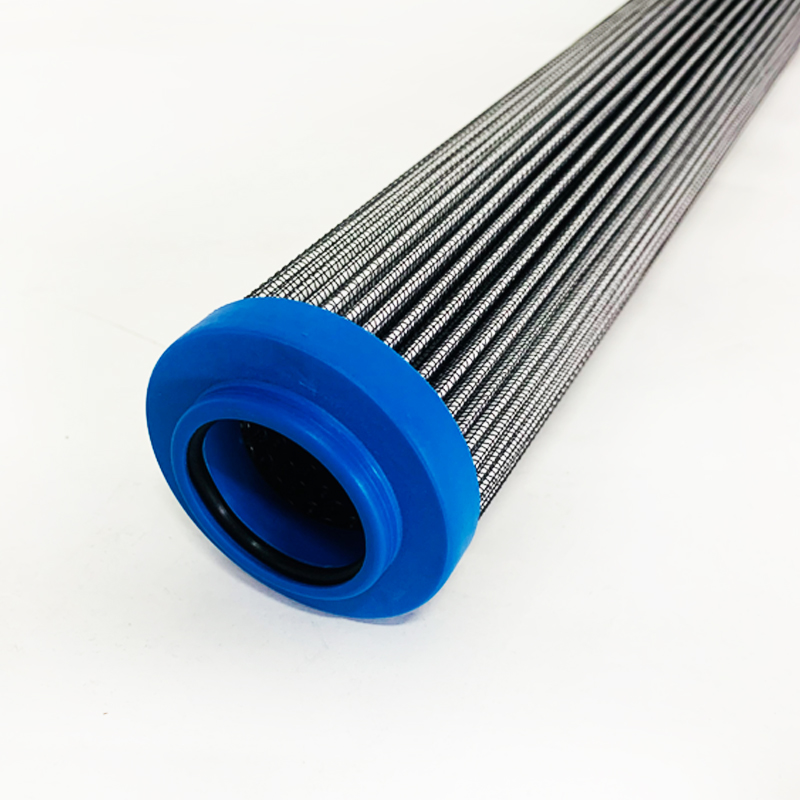

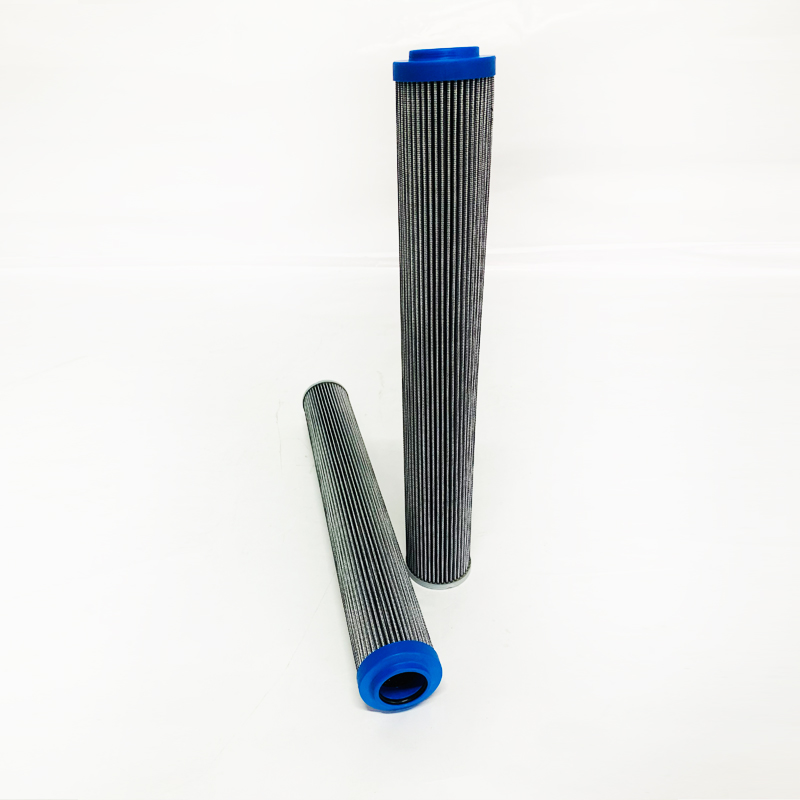

Basic information of 300255 01.E.45010VG.30.E.9.- Hydraulic oil filter element

Product overview

300255 01.E.45010VG.30.E.9.- is a hydraulic oil filter element, which belongs to Eaton's 01.E series. This filter element is mainly used to filter solid particles and impurities in the hydraulic system to ensure the cleanliness of the hydraulic oil and the normal operation of the system.

Technical specifications

- Filter accuracy: 10VG (10 microns).

- Filter material: Glass fiber fleece, filter paper, stainless steel wire mesh.

- Working pressure: 21 bar to 210 bar.

- Working medium: hydraulic oil.

- Working temperature range: -20°C to 100°C.

- Seal material: Nitrile rubber (NBR) or fluororubber.

Features

- High filtration efficiency: 99.9%.

- Large dirt holding capacity: Extends filter element service life.

- Structural strength: Passes ISO 2941 (burst resistance test), ISO 2942 (structural integrity test) and other international standards.

- Scope of application: Applicable to hydraulic systems and lubrication systems.

Application scope

- Industry application: Widely used in steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, mechanical processing, engineering machinery and other fields.

- Installation location: Usually installed in the suction line, pressure oil line, return line or bypass line of the hydraulic system.

Maintenance recommendations

- Regular replacement: It is recommended to replace according to the system running time and pressure difference indication.

- Clean system: Before replacing the filter element, it is recommended to clean the hydraulic system to ensure that there are no residual impurities.

The filter element is an indispensable component in the hydraulic system, which can effectively protect the equipment from impurity contamination and extend the service life of the equipment.
