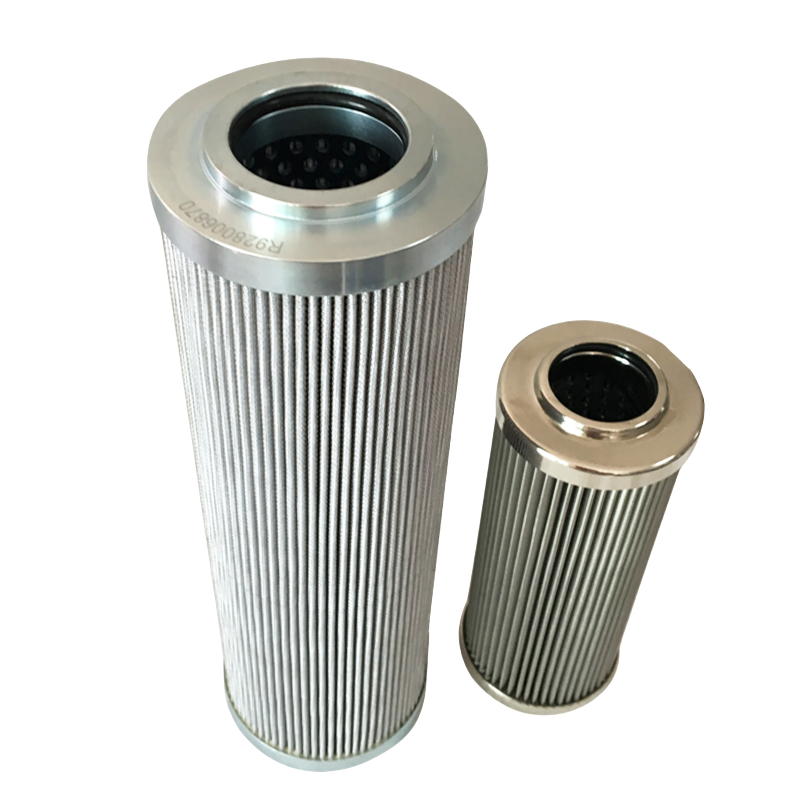

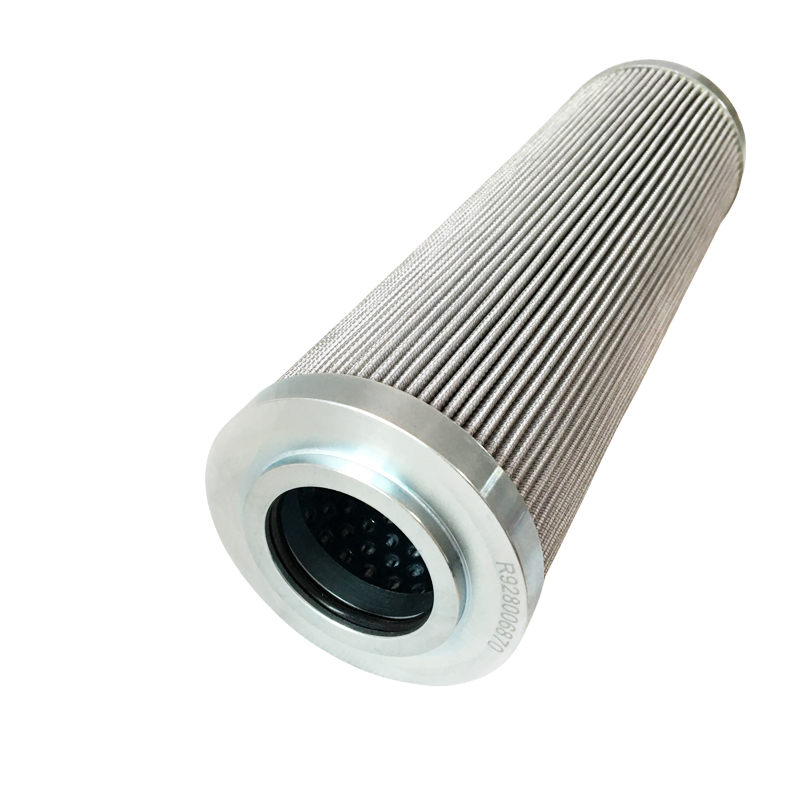

300146.01.E170.3VG. HR High-Pressure Hydraulic Oil Filter Element

The following is the basic information of the 300146.01.E170.3VG.HR.E.P high-pressure hydraulic oil filter element:

1. Product usage:

   - This filter element is used for hydraulic oil filtration in the hydraulic filter lubrication system. It is used to filter out impurities and oil stains in the oil system to ensure the normal operation of the hydraulic system.

2. Technical parameters:

   -Filtering precision: 1, 3, 6, 12, 25um, etc.

   - Working pressure: 0.6---42Mpa.

   - Working temperature: -20℃---+100℃.

   - Filtration ratio: X≧100.

   - Structural strength: 1.0Mpa, 2.0Mpa, 16.0Mpa, 21.0Mpa.

3. Materials:

   -Filter material: glass fiber filter material-BN.

   -Sealing material: fluorine rubber ring, nitrile rubber.

4. Work pressure (MAX):

   - The maximum working pressure is 0.6~42Mpa.

5. Working medium:

   - General hydraulic oil, phosphate ester hydraulic oil, emulsion, water-glycol.

6. Test standards:

   - Filter element rupture resistance verified according to ISO 2941.

   - Filter element structural integrity as per ISO 2942.

   - Material and liquid communication compatibility verification according to ISO 2943.

   - The end load test method is in accordance with ISO3723.

   - The fatigue characteristics of the filter element are measured according to ISO3724.

   - Measurement of differential pressure flow characteristics is in accordance with ISO3968.

   - Multiple pass method for determination of filtration characteristics according to ISO 4572.

7. Application areas:

   - Metallurgical industry, automobile industry, electric power equipment, chemical industry, engineering machinery, paper industry, shipbuilding industry, machine tool manufacturing and other fields.
