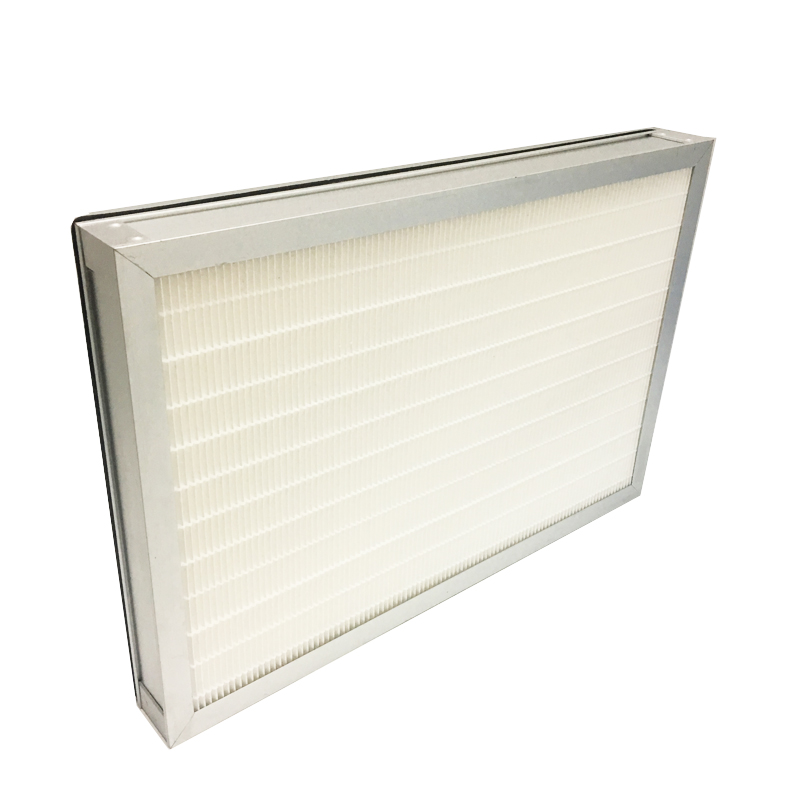

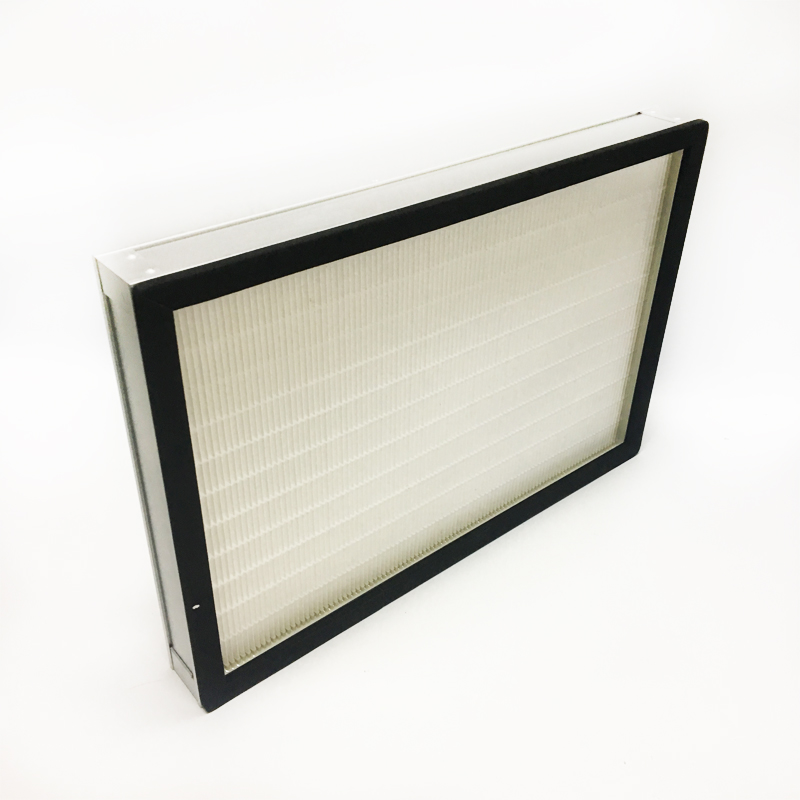

The following is the basic information of the 2627267-000-440 plate and frame dust filter:

Technical specifications

Filtration accuracy: 0.3-30μm.

Filter material: glass fiber, polyester fiber, PTFE coating, etc.

Working temperature: up to 120℃.

Working pressure: ≤450 kg.

Filtration efficiency: 99%.

Sealing material: EPDM rubber.

End cover material: fingerprint-resistant plate/galvanized plate/stainless steel plate.

Frame/outer mesh: diamond steel mesh.

Testing standards

ISO 2941: Test method for filter element rupture resistance.

ISO 2942: Test method for structural integrity of hydraulic filter elements.

ISO 2943: Test method for compatibility of hydraulic filter element materials with liquids.

ISO 3723: End-to-end compliance test of filter elements.

ISO 3724: Determination of filter element fatigue characteristics.

ISO 3968: Pressure differential flow characteristics of filter elements.

ISO 4572: Multiple-pass method for determining filtration characteristics of filter elements.

Application areas

Industrial gas and environmental protection equipment: used to treat industrial gas and dust, purify the air.

Energy and chemical industry: recycling raw materials, purifying and removing dust.

Machinery and glass: used for dust recovery and purification on glass production lines.

Pharmaceutical and cigarette: purify the air and prevent dust pollution.

Coating and wood industry: prevent dust pollution and protect the working environment.

Crushing and polishing: dust recovery and purification.

Power plants, steel mills, shields, mining, papermaking, petroleum, ships, chemicals, textiles and other industries: used for air filtration and dust removal.

Features

High-efficiency filtration: can effectively capture dust above 0.1μm, with a capture efficiency of up to 99.99%.

Low resistance design: using corrugated partitions to maintain the pleat spacing and reduce resistance.

Long life: the filter material is made of polyester synthetic fiber or glass fiber, which can be washed and reused many times.

Compact structure: save space, easy to install and maintain.

Customization: Different precision, material and size can be customized according to requirements.
