261487,266219 Air Respirator, Fuel Tank Respirator

The following is basic information about 261487 and 266219 air respirators and fuel tank respirator DE:

1. Air respirator:

- Air respirators are personal protective equipment used to provide respiratory protection in oxygen-deficient or toxic environments. They are usually equipped with a compressed air tank for the user to breathe in an emergency.

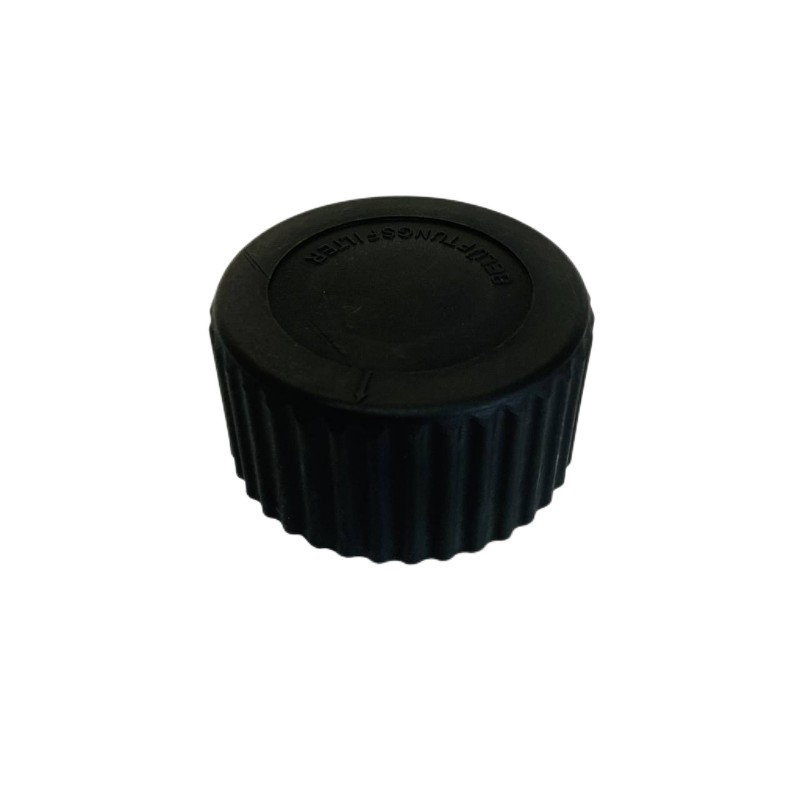

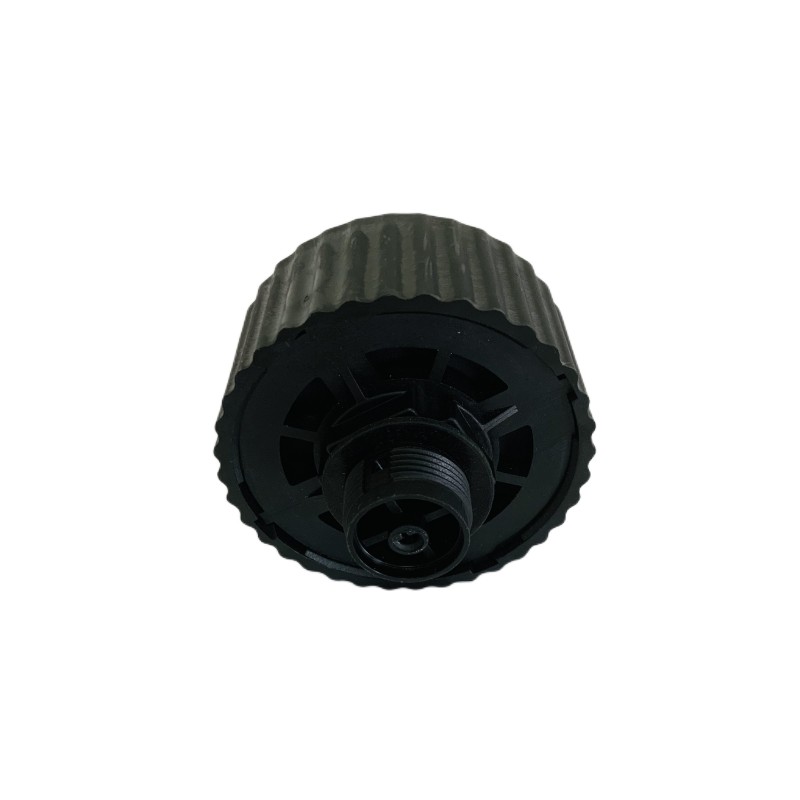

2. Fuel tank respirator (TC-S1):

- Fuel tank respirators can be divided into two specifications: threaded and flat, suitable for installation environments with internal threads on the fuel tank base and direct connection with flat ports.

- The fuel tank respirator is composed of a wear-resistant and high-temperature resistant shell, filter cotton, filter mesh, activated carbon and color-changing silica gel, which can filter moisture, dust, oil gas and other harmful gases in the air entering and leaving the fuel tank.

- Product features include standard threads for easy replacement of ordinary respirators, micron-level filter cloth to avoid solid pollution, color change of the water absorbent after being full of water for easy identification and replacement, activated carbon absorption layer to absorb oil mist generated in the system, and the shell is made of high-strength plastic with a temperature resistance of up to 90 degrees.

3. Oil tank breather model:

- The product is divided into three models, TC-S1 is used for small reducers and oil tanks, TC-S2 is used for large reducers and small oil stations, and TC-S3 is used for large oil stations. The product needs to be used with the universal TC-35 base.

4. Function and use of oil tank breather:

- The oil tank breather replaces the original breathable cap and is used at the air inlet of oil stations, oil tanks, and reducers. Under the principle of the original breathable cap, the oil tank breather increases the drying effect, reduces the failure rate of mechanical equipment and extends the service life of lubricating oil.

5. Working principle of oil tank breather:

- The product consists of a shell, a solid particle filter, a gas diffusion particle, activated carbon, and high-performance moisture absorption particles. When air enters the oil tank, it first passes through a solid particle filter to filter out dust in the gas, then passes through a high-performance desiccant to filter out moisture in the gas, and finally passes through activated carbon to filter out harmful gases.

6. Technical details of the tank breather (taking HYDAC as an example):

- Filter capacity: 2µm: 26 g, maximum water absorption, adsorbent capacity (depending on operating and environmental conditions): HYDAC tank breather size 200: 0.25 l, size 400: 0.50 l, size 1000: 0.75.
