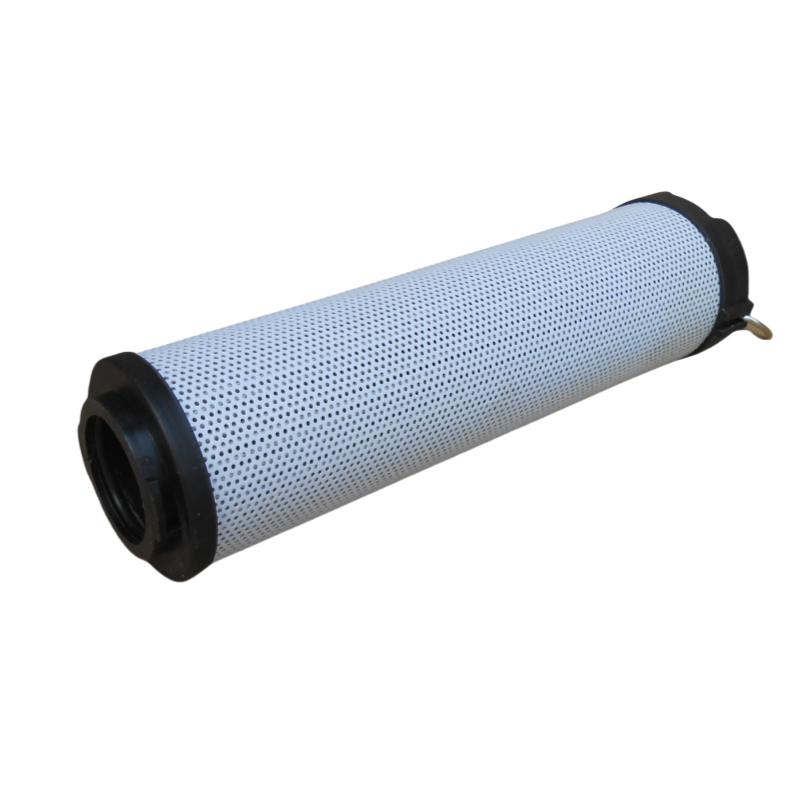

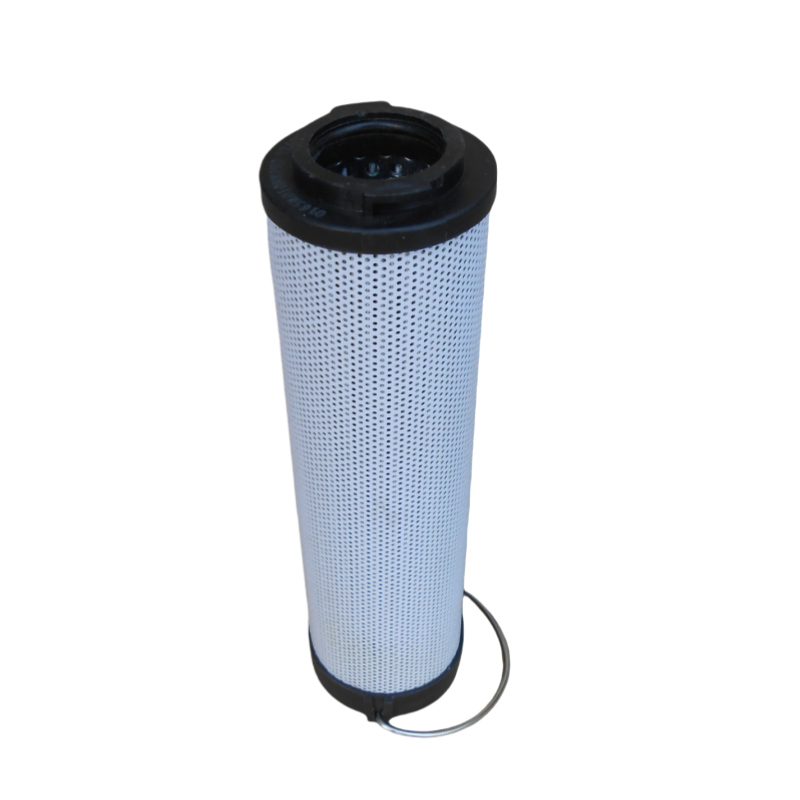

1. Oil return filter element 224429:

   - Item number: 224429

   - Main purpose: Used to remove impurities from oil, installed on the oil return line of the system, filtering the particles generated by the shedding of the oxide layer on the tank or pipe wall in the system or the wear of hydraulic components, and protecting the pump and other components.

    - Technical parameters:

     - Filter material: glass fiber/metal mesh filter material

     - Accuracy: 10μm

     - Filtration ratio: X≧200

     - Working pressure: 1.6Mpa

     - Opening form: sealed connection

     - Seal: Nitrile rubber

     -Skeleton: thickened stainless steel punching plate.

    - Features: Equipped with a filter element pollution clogging transmitter and a bypass valve to improve the reliability of the hydraulic system. When the filter element is blocked by pollutants or the system liquid temperature is too low, the transmitter will send a signal to indicate that the filter element should be replaced in time or the temperature should be increased. If the machine cannot be shut down immediately to deal with these faults, the bypass valve will automatically open.

2.P566991

   - Type: ORIGINAL HYDRAULIC FILTER, CARTRIDGE DT (original spare parts)

   - Availability: Available from stock

   - Origin: Europe

   - Shipping area: Global

   - Product attributes:

     -Inner diameter: 2.54 inches

     - Outside diameter: 4.46 inches

     - Overall length: 16.17 inches

     -Sealing material: Viton

     - Media Type: Synthetic

     - Burst pressure: 10.3 bar (149 psi)

     - Efficiency Beta 1000: 12 microns.
