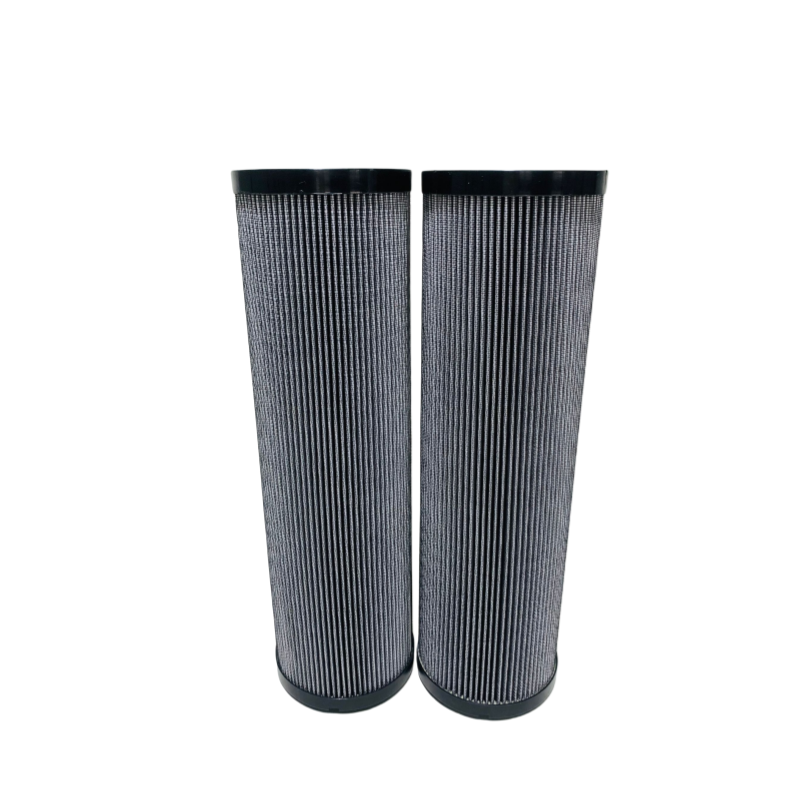

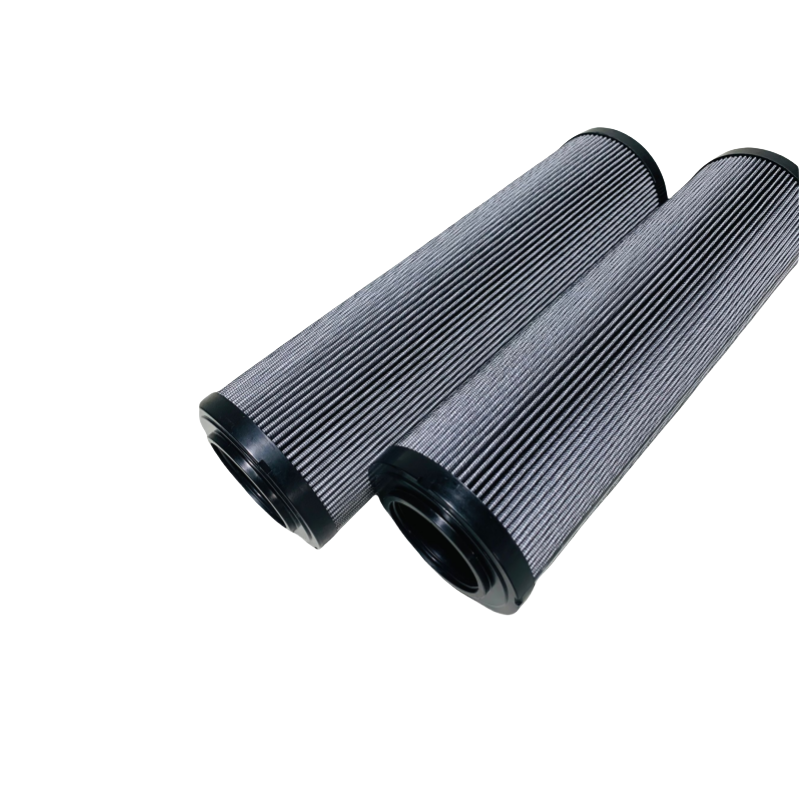

The following is the basic information about the hydraulic oil filter element with model number 20.0351 PWR6-E00-6-M, R92805402:

Product use

This filter element is mainly used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system. It is widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, ships, chemicals, textiles and various power machinery industries.

Technical parameters

Filter accuracy: 1-100μm.

Filter material: glass fiber, filter paper, stainless steel mesh.

Working pressure: 1.0MPa, 2.0MPa, 16.0MPa, 21.0MPa.

Working temperature: -30℃ to +100℃.

Rated flow: 6~9100 L/min.

Filtration efficiency: 99.9%.

Testing standards

This filter element complies with the following international standards:

ISO 2941: Test method for filter element rupture resistance.

ISO 2942: Test method for structural integrity of hydraulic filter elements.

ISO 2943: Test method for compatibility of hydraulic filter element materials with liquids.

ISO 3723: End-to-end compliance test of filter elements.

ISO 3724: Determination of fatigue characteristics of filter elements.

ISO 3968: Pressure differential flow characteristics of filter elements.

ISO 4572: Multiple pass method for determining filtration characteristics of filter elements.

ISO 16889: Filtration ratio/dirt holding capacity.

Features

High efficiency filtration: It can effectively remove particulate impurities in hydraulic oil to ensure system cleanliness.

A variety of filter material options: glass fiber, filter paper and stainless steel mesh, etc., to meet different working conditions.

High structural strength: Suitable for high-pressure hydraulic systems.

Long life design: High-quality filter materials and structural design extend the service life.

Application areas

Industrial hydraulic system: Used to filter impurities in hydraulic oil and protect hydraulic components.

Lubrication system: Suitable for various lubrication equipment.

Steel, electric power, metallurgy, shipbuilding, aviation, papermaking, chemical industry, machine tools and construction machinery: hydraulic systems widely used in these industries.
