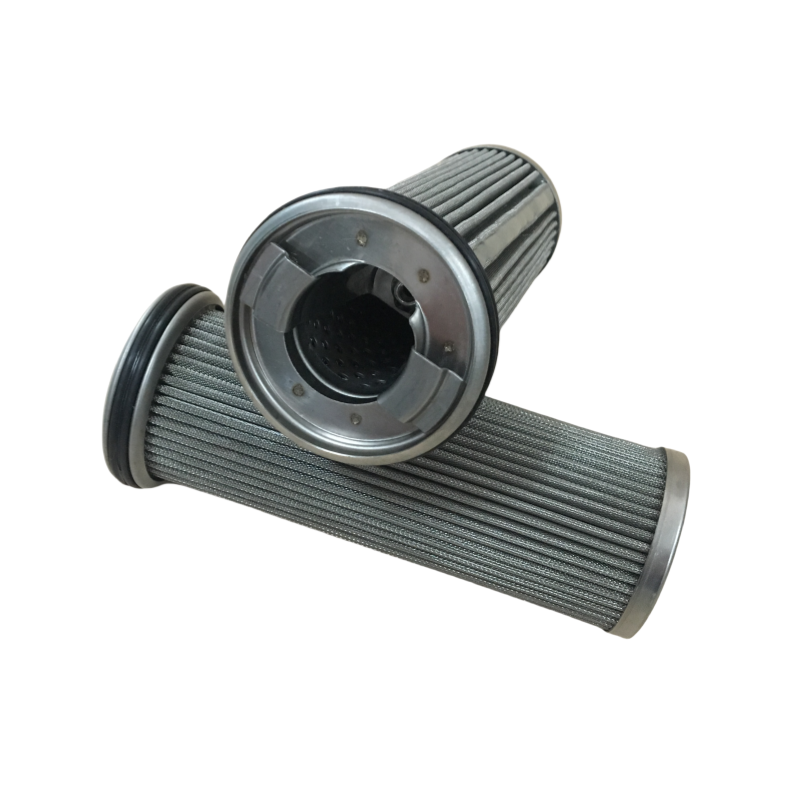

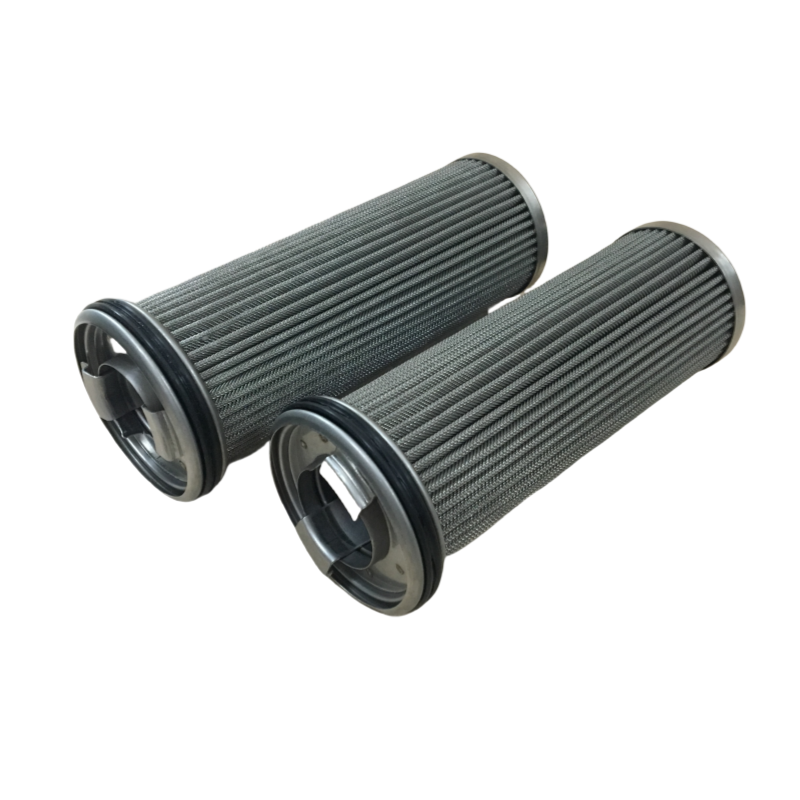

1945964 Double Tube Filter Cartridge Filter Element

The basic information of double-cylinder filter element 1945964 is as follows:

1. Product structure: The double-cylinder filter consists of two single-cylinder filters and a two-position six-way reversing valve. It has a simple structure and is easy to use. It is also equipped with a bypass valve and a filter element pollution and clogging transmitter to ensure system safety. purpose.

2. Working principle: It is mainly installed on the oil return line of the hydraulic system. Various dirt such as abrasive particles produced by various hydraulic components during the working process can be intercepted by setting up the oil return line oil filter to avoid returning to the oil tank again. , is sucked in by the hydraulic pump again.

3. Filter element design: pleated design with optimized pleat density and a variety of filter element materials. The filter element is the most important component of the "filter" system. The required cleanliness of the working medium, initial pressure difference and dirt holding capacity are the most important criteria for selection.

4. Filtration accuracy: depending on different pressure levels, the range is 0.3~0.5MPa. The accuracy is specifically determined based on the oil contamination requirements.

5. Working pressure: nominal pressure 100 bar, maximum interface size DN 100, working temperature –10°C to +100°C.

6. Filter element material: stainless steel wire mesh, cleanable: G10, G25, etc.; paper, not cleanable: P10, etc.; absolute (ISO 16889) glass fiber, not cleanable: PWR3, PWR10, PWR20, etc.

7. Pressure difference: The maximum allowable pressure difference of the filter element is 30 bar or 60 bar, depending on the model.

8. Seals: NBR seals or FKM seals.

9. Bypass valve: used to protect the filter element during startup and prevent overpressure due to blockage.
