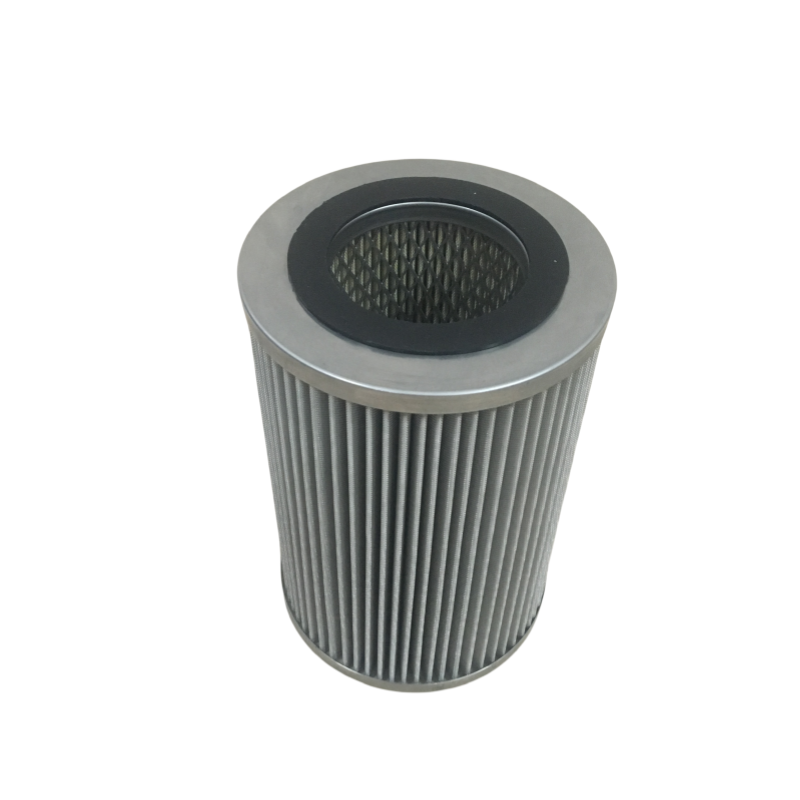

The basic information of 1833G 12 micron oil filter element is as follows:

1. Product introduction:

   - 1833G 12 micron oil filter element adopts high-quality and high-efficiency filter material, suitable for single-cylinder and double-cylinder filters, and is widely used in food processing, plastics industry, paper industry, power plants, petrochemicals, steel plants, cement plants, ships and other industries.

2. Technical parameters:

   - Working pressure: 16bar, special requirements can be customized.

   - Maximum operating temperature: 120℃.

   - Working flow: 2-2600L/min.

   - Pressure difference alarm: 1bar, 3bar, 3.5bar.

   -Filter material: fiberglass, stainless steel.

   - Seal: fixing rubber, fluororubber.

3. Filter element testing standards:

  - ISO 2941 Filter elements - Test method for filter element rupture resistance

- ISO 2942 Filter elements - Test method for structural integrity of hydraulic filter elements

- ISO 2943 Filter elements - Test method for compatibility of hydraulic filter elements with liquids

- ISO 3723 Filter elements - End-to-end compliance test

- ISO 3724 Filter elements - Determination of fatigue characteristics

- ISO 3968 Filter elements - Pressure differential flow characteristics

- ISO 4572 Filter elements - Multiple pass method for determining filtration characteristics

4. Main application areas:

- Used for filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

- Petrochemical: separation and recovery of products and intermediate products in the process of oil refining and chemical production, purification of liquids, purification of magnetic tapes, optical disks and photographic films in manufacturing, and particle removal filtration of oil field injection water and natural gas.

- Textile: stirring liquids, air suspension, wetting, running accumulators, spraying, spraying systems, and infusion. Purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressors, deoiling and dehydration of compressed gas.

- Electronics and pharmaceuticals: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of cleaning liquid and glucose.

5. Filtration accuracy:

- Glass fiber filter material: 1-70μm (micrometer); metal mesh filter material: 3-400μm (micrometer); filter paper filter material: 5-40μm (micrometer).

6. Rated flow:

- 6~9100 L/min.

7. Working pressure:

- ≤450 kg.
