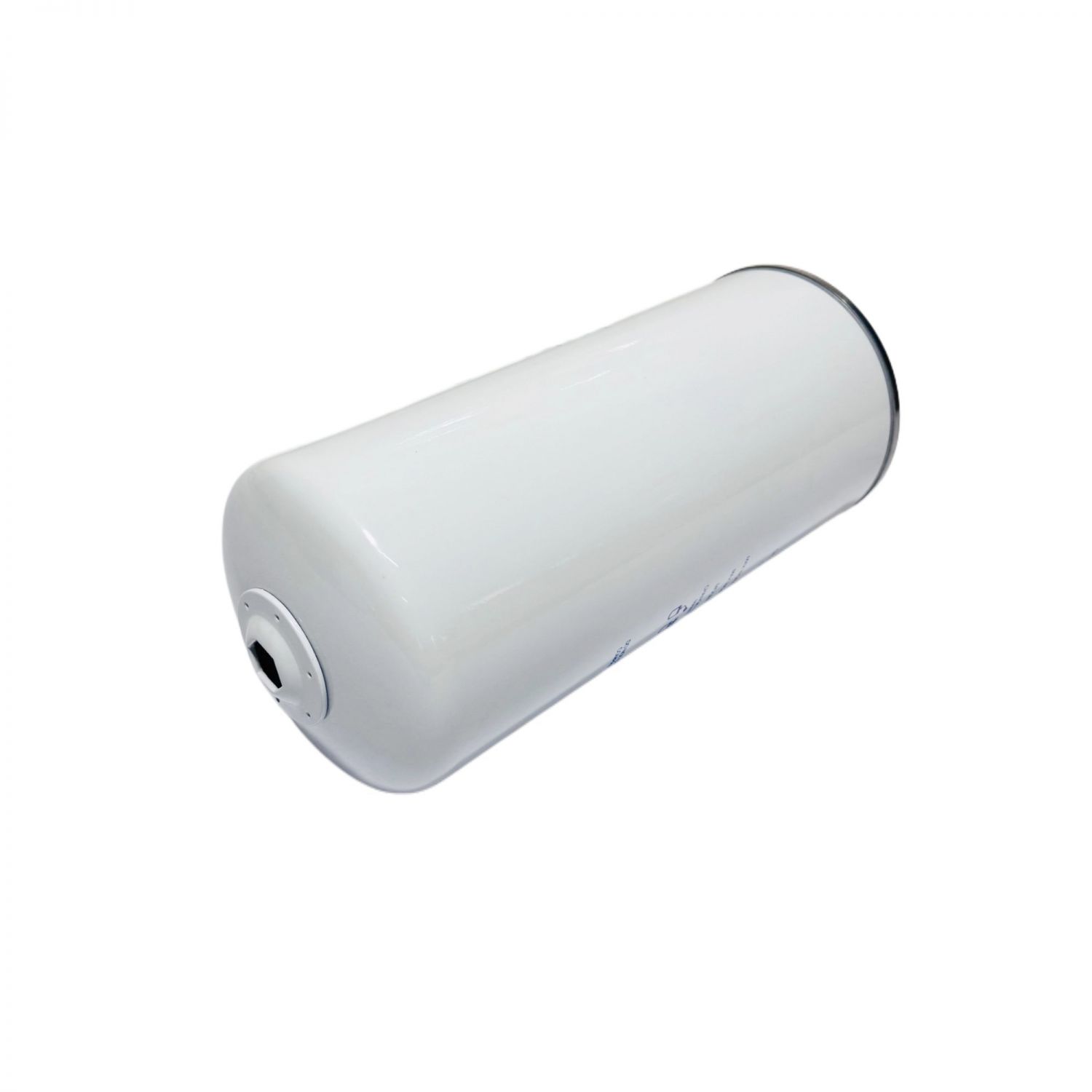

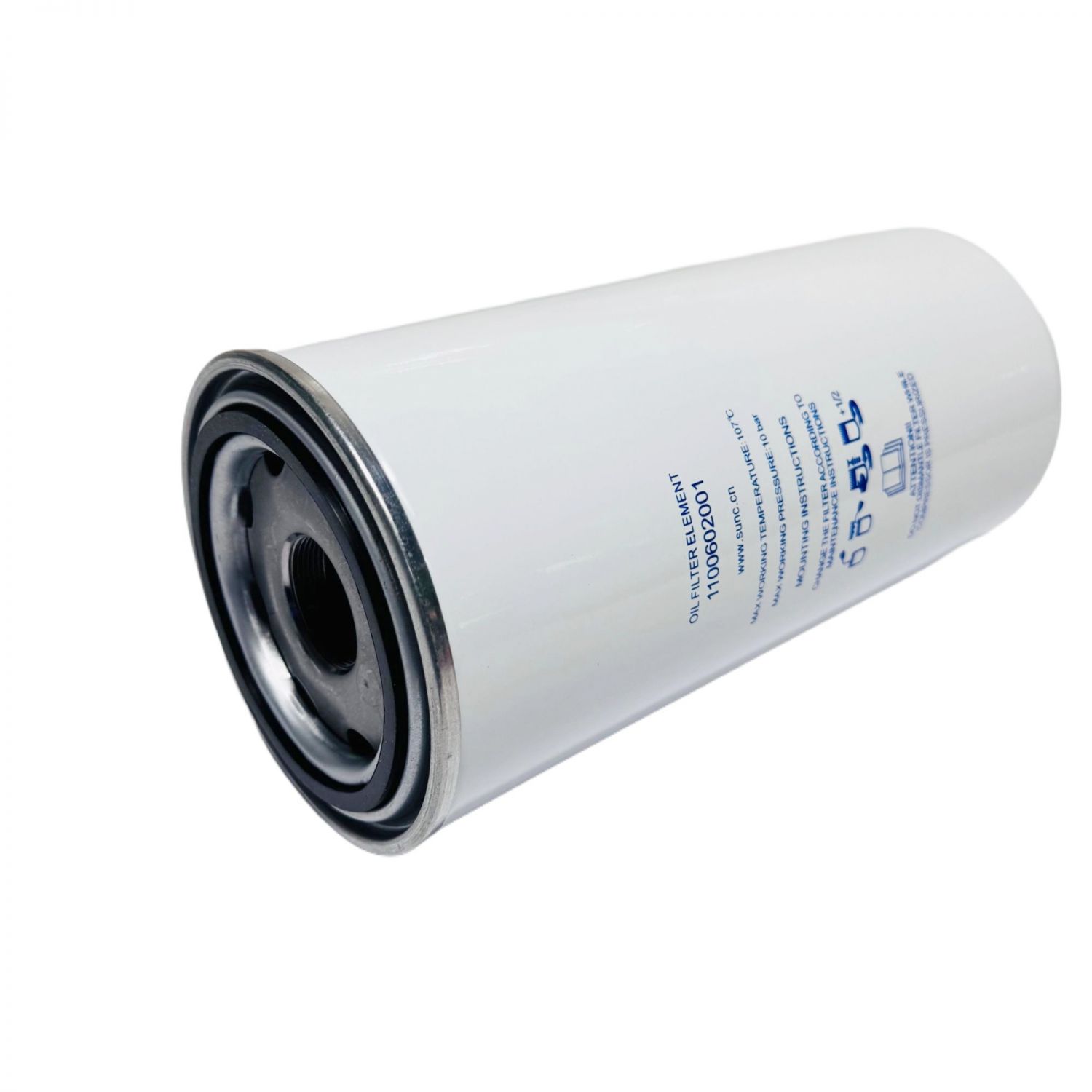

1100602001 Oil filter

 Basic Information of Oil Filter 1100602001

 Product Overview

The 1100602001 oil filter is a highperformance filtration element designed for use in screw air compressors. It is specifically engineered to remove impurities and contaminants from the lubricating oil, ensuring the efficient and safe operation of the compressor system.

 Technical Specifications

Filter Material: Glass fiber composite or pure wood pulp filter paper.

Filter Accuracy: 1015 microns.

Operating Pressure: Up to 1.0 MPa.

Service Life: Approximately 2000 hours.

Temperature Range: Suitable for temperatures up to 180°C.

Filter Efficiency: 99.99%.

Testing Standards: Complies with ISO 2941 (filter element rupture resistance), ISO 2942 (structural integrity), ISO 2943 (material compatibility), ISO 3724 (flow fatigue resistance), ISO 3968 (pressure drop vs. flow rate), and ISO 16889 (multipass performance testing).

 Applications

Primary Use: Lubrication system in screw air compressors.

Industries: Suitable for chemical, pharmaceutical, food, metallurgy, papermaking, and other industrial applications.

 Features

High Filtration Efficiency: Effectively removes solid particles and impurities from the oil.

Durability: Made from highquality materials to withstand harsh industrial environments.

Extended Service Life: Designed to last up to 2000 hours, reducing maintenance frequency.

Wide Compatibility: Fits various models of screw air compressors.
