HYDAC/HYCON 0660R010BN4HC Hydraulic Filter Direct Interchange by Millennium-Filters

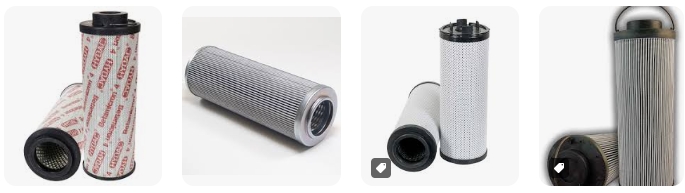

Description of the image

 0660r010bn4hc




The 0660R010BN4HC is a hydraulic oil return filter element designed for use in various industrial applications where high filtration efficiency is required. Here are the detailed specifications and features:

  • Type: Return line filter element.
  • Size: 0660.
  • Filter Material: BN/HC (Betamicron low pressure).
  • Sealing Material: NBR (Perbunan).
  • Bypass: KB=no bypass.
  • Filtration Rating: 10 µm.
  • Collapse Stability: Up to 20 bar.
  • Operating Temperature: -30 °C to +100 °C.
  • Flow Direction: From outside to inside.

Dimensions:

  • Overall Height: 13.11 inches (333.82 mm).
  • Outer Diameter (OD) Top: 4.48 inches (113.75 mm).
  • Inner Diameter (ID) Top: Same as OD Top.
  • Outer Diameter (OD) Bottom: 4.48 inches (113.75 mm).
  • Inner Diameter (ID) Bottom: 2.69 inches (68.29 mm).

Applicable Industries and Equipment:

  • Suitable for use in hydraulic systems where high filtration efficiency is required.
  • Commonly used in construction machinery, agricultural machinery, and material handling equipment.

Related Models: For clients seeking alternatives or additional options, related hydraulic filter models may include:

  • 0160 RN 010 BN4HC
  • 0660 R 010 SN

This filter element is essential for enhancing the reliability and performance of hydraulic systems by removing harmful contaminants such as dirt, debris, and other particles that can cause damage to hydraulic components. Regular maintenance and replacement of the 0660R010BN4HC filter help ensure smooth operation and extend the life of the equipment.


You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.

Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.

DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.

All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941

All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.

Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
