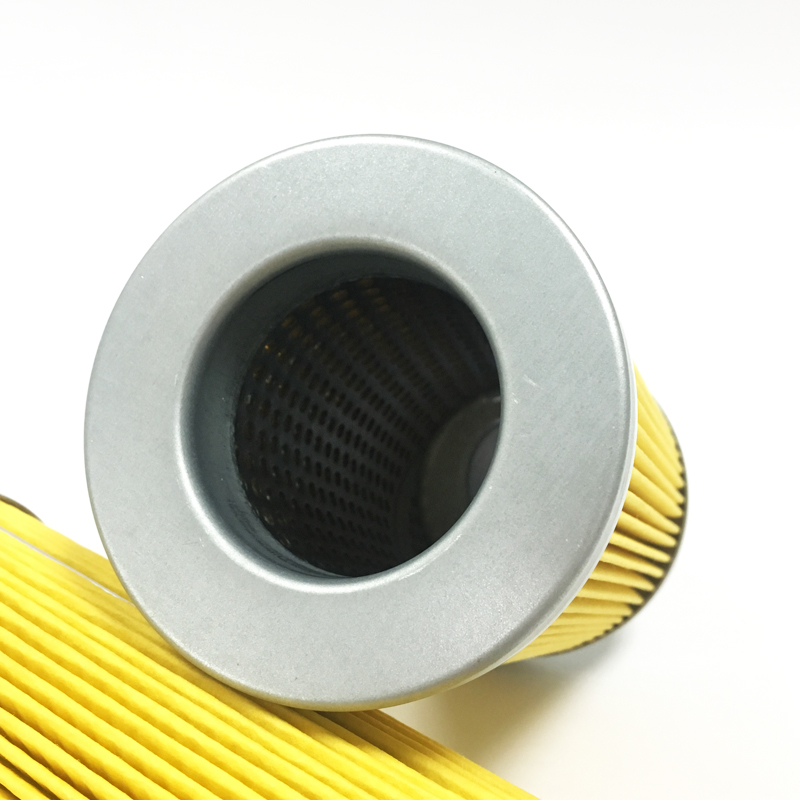

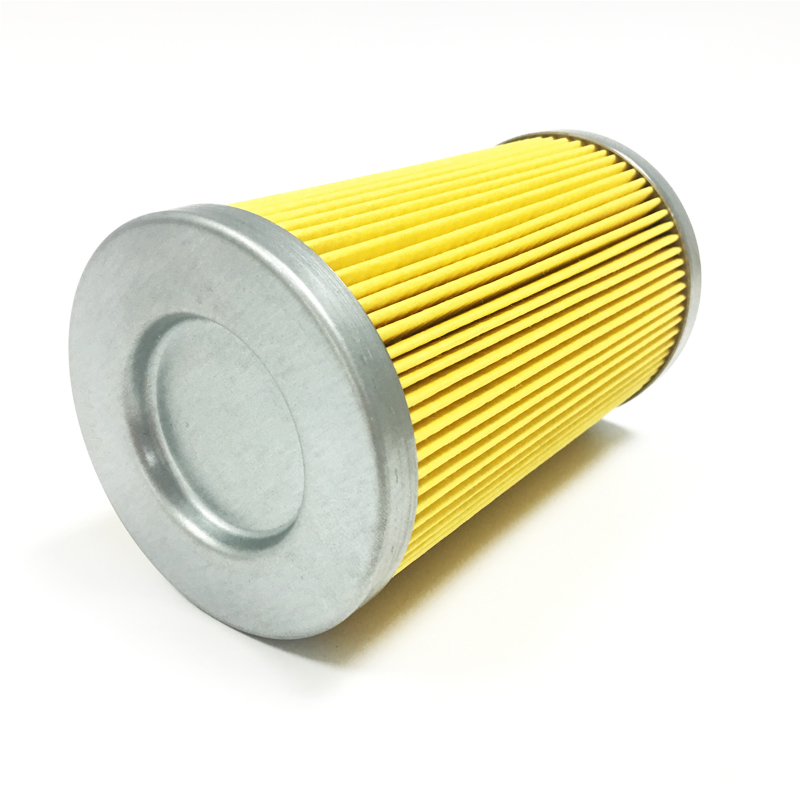

T he basic information of hydraulic oil filter element 04.PI1008.25P.16.E.O, 300812 is as follows:

 Product use

This filter element is mainly used in turbine hydraulic oil system, which can continuously filter impurities, water and other pollutants in the oil to ensure the normal operation of the system.

 Technical parameters

- Filter material: glass fiber, filter paper, metal mesh, metal powder, metal sintering, sintered felt, etc.

- Filter accuracy: According to different filter materials, the filter accuracy range is 1-70μm (glass fiber filter material), 3-400μm (metal mesh filter material), 5-40μm (filter paper filter material).

- Rated flow: 6~9100 L/min.

- Working pressure: ≤450 kg.

- Working temperature: -30~120℃.

- Pressure difference: minimum 0.2MPa.

 Features

- Directly installed in the oil tank, simplifying the system piping and saving space.

- With a self-sealing valve, the oil in the oil tank will not flow back when the system is repaired.

- With a bypass valve, when the filter element is blocked by pollutants and the pressure difference reaches 0.35MPa, the bypass valve will automatically open to protect the normal operation of the system.

- With a magnetic device, it can filter out ferromagnetic particles larger than 1μm in the return oil.

 Testing standards

- ISO 2941 Test method for filter element rupture resistance.

- ISO 2942 Test method for structural integrity of hydraulic filter elements.

- ISO 2943 Test method for compatibility of hydraulic filter element materials and liquids.

- ISO 3723 End-to-end compliance test of filter elements.

- ISO 3724 Determination of fatigue characteristics of filter elements.

- ISO 3968 Pressure difference flow characteristics of filter elements.

- ISO 4572 Multiple pass method for determining filtration characteristics of filter elements.

- ISO 16889 filtration ratio/pollution holding capacity.

 Application areas

Widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, shipping, chemicals, textiles, various power machinery and other industries.
