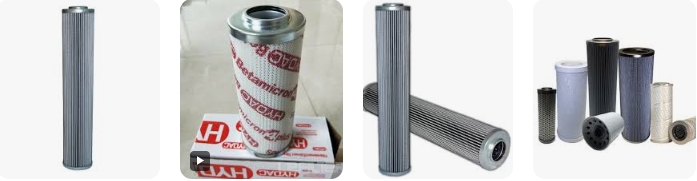

The 0280D010BN4HC filter element is a hydraulic oil filter designed and manufactured by HYDAC, a company renowned for its high-quality filtration products. This filter is engineered to provide efficient filtration and optimal performance in various hydraulic systems. Here are the detailed specifications and information about this filter:
Filter Model: 0280D010BN4HC Description: Hydraulic oil filter element Filter Material: Microglass fiber media, known for its high dirt-holding capacity and efficiency in capturing contaminants Filtration Rating: The filter is available in various ratings, including 3, 5, 6, 10, 20, and 25 microns, ensuring that the hydraulic system maintains clean oil and reduces the risk of component failure .
Dimensions:
Outer Diameter (Top): 2.75"
Outer Diameter (Bottom): 2.74"
Inner Diameter: 1.337"
Length: 13.98"
End Caps: Corrosion-resistant steel
Center Tube: Corrosion-resistant steel
Seal Material: Viton (Fluorocarbon), suitable for a wide range of hydraulic fluids and providing a reliable seal
Collapse Stability: The filter element has a collapse stability rating of up to 20 bar for BN4HC material and up to 210 bar for BH4HC material, ensuring the filter maintains its shape under pressure .
Temperature Range: The filter is designed to operate effectively in a temperature range of -30°C to +100°C, with a lower limit of -10°C for the sealing material .
Flow Direction: From outside to inside, which helps in achieving even pressure differentials and avoiding the collapse of the filter element .
Bypass Valve: The standard filter element does not include a bypass valve, ensuring that the filtration performance is not compromised .
Applications: This filter element is used in various hydraulic systems where high filtration efficiency is required. It is compatible with a wide range of hydraulic fluids, including HFA, HFB, HFC, and HFD fire-resistant fluids, as well as lubrication oils and compressor oils .
The 0280D010BN4HC filter element is a critical component for maintaining the efficiency and longevity of hydraulic systems. Its high-quality construction and filtration performance make it a reliable choice for hydraulic system maintenance. For further inquiries or to place an order, customers are advised to contact the manufacturer or supplier directly .
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
