1250490 HYDAC 0160 D 010 ON Filter element pressure
1250490 HYDAC 0160 D 010 ON Filter element pressure

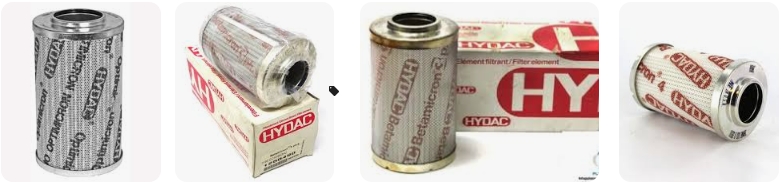

The 0160 D 010 ON filter element is a hydraulic filter designed to remove contaminants from hydraulic systems. It is part of the HYDAC filtration range and is specified with a filtration rating of 10 microns. This filter element is made from Optimicron® material, which is suitable for low-pressure applications and provides high filtration efficiency.
Technical Specifications:
Size: 0160
Type: D – pressure elements
Filter Material: ON (Optimicron® low pressure)
Sealing Material: NBR (Perbunan)
Bypass: No bypass (KB)
Filtration Rating: 10 µm
Operating Pressure: Up to 280 bar
Temperature Range: -30 °C to +100 °C (-30 °C to -10°C: max. 140 bar)
Flow Rate: Maximum flow rate depends on the filter size and connection size, with the highest flow rate being 280 l/min for the 240 size with an E connection .
Applications: The 0160 D 010 ON filter element is used in hydraulic systems where the removal of solid particles is critical to prevent equipment failure and extend the service life of hydraulic components. It is commonly used in industrial and mobile hydraulic systems, such as those found in construction equipment, agricultural machinery, and industrial machinery.
Industry Applications: This filter element is widely used in industries that rely on hydraulic systems for their operations, including but not limited to construction, agriculture, mining, and manufacturing.
Replacement Elements: For customers seeking replacement elements, the 0160 D 010 ON is a specific model that can be sourced from HYDAC or compatible alternatives can be considered based on cross-references. It is important to ensure that the replacement element matches the specifications of the existing system to maintain optimal performance and filtration efficiency.
The 0160 D 010 ON filter element is a reliable choice for hydraulic systems requiring high filtration efficiency and is backed by the technical support and certifications from HYDAC, a renowned name in the filtration industry
You know you have received a quality DeMalong Filter hydraulic filter when you our logo on the filter box with our brand name and part number.
Our filters are built with the highest quality and reliability in mind so you know your equipment is safe and can keep running smoothly.
DeMalong Filter hydraulic filters can be used in a variety of industries including but not limited to: power generation, defense, oil/gas, marine and other motor sports, shipping and transportation, railroad, mining, pulp and paper, steel making and manufacturing, entertainment and various other industries.
All of our elements are manufactured according to ISO specifications, including: ISO 16889, Clean DP (low and high visc.) - ISO 3968, Fluid compatibility - ISO 2943, Flow fatigue resistance - ISO 3724, Dirt capacity - ISO 16889, Collapse pressure - ISO 2941
All items marked "Replacement" or "Interchange" are not affiliated with the original manufacture where names and part numbers are for cross reference only. All trademarks are trademarks of their respective owners. Reference is made to the OEM solely to identify the compatibility of DeMalong Filter Inc. filter with the OEM filter.
Images may be general representations of products and may vary from image. All items are sold by 1 unit unless a pack size is listed in the title description.
