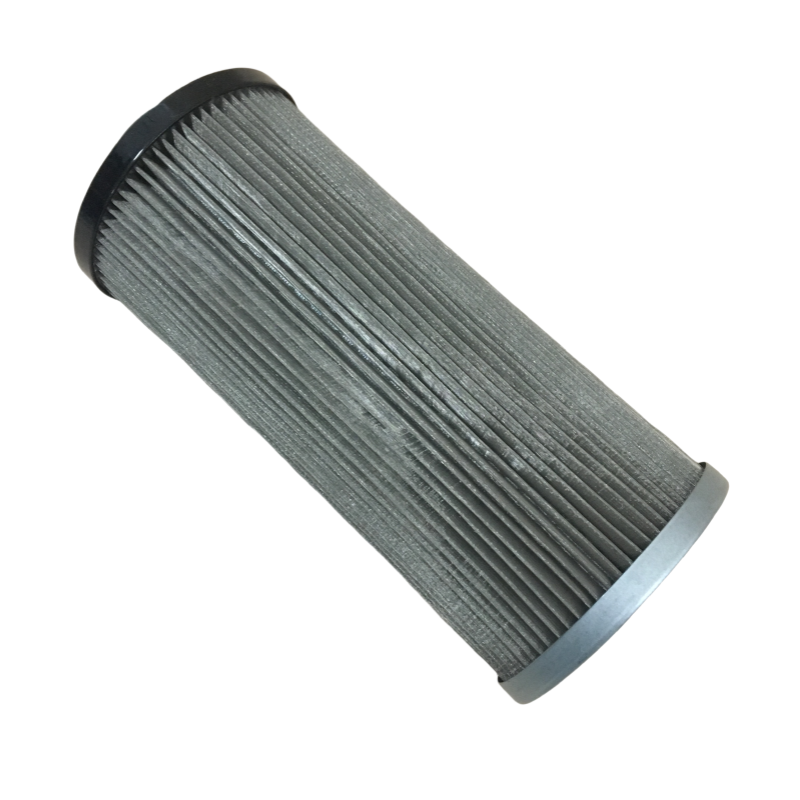

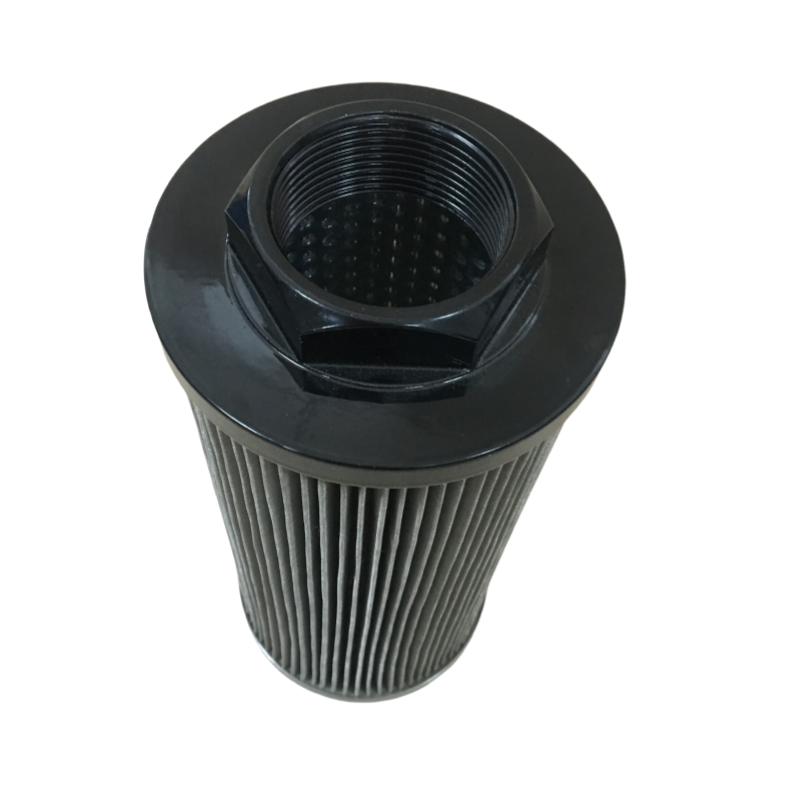

The basic information of RB 101-6219-0 hydraulic oil filter is as follows:

1. Product introduction:

The hydraulic oil filter RB 101-6219-0 adopts high-quality and high-efficiency filter materials, suitable for single-tube and double-tube filters, and is widely used in food processing, plastic industry, papermaking industry, power plants, petrochemical industry, steel mills, cement plants, ships and other industries.

2. Technical parameters:

- Working pressure: 16bar, special requirements can be customized.

- Maximum working temperature: 120℃.

- Working flow: 2-2600L/min.

- Pressure differential alarm: 1bar, 3bar, 3.5bar.

- Filter material: glass fiber, stainless steel.

- Seal: Dingjing rubber, fluororubber.

3. Filter element testing standards:

- ISO 2941 filter element-filter element rupture resistance test method.

- ISO 2942 filter element-hydraulic filter element structural integrity test method.

- ISO 2943 filter element - test method for compatibility of hydraulic filter element materials with liquids.

- ISO 3723 filter element - end-to-end compliance test.

- ISO 3724 filter element - determination of fatigue characteristics.

- ISO 3968 filter element - differential pressure flow characteristics.

- ISO 4572 filter element - multiple pass method for determining filtration characteristics.

4. Main application areas:

- Used for filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

- Petrochemical industry: separation and recovery of products and intermediate products in oil refining and chemical production processes, purification of liquids, purification of tapes, CDs and photographic films in manufacturing, and particle removal filtration of oilfield injection water and natural gas.

- Textile industry: stirring liquids, air suspension, wetting, operating accumulators, spraying, spraying systems, infusion. Purification and uniform filtration of polyester melts in the wire drawing process, protective filtration of air compressors, and deoiling and dewatering of compressed gases.

- Electronic and pharmaceutical industries: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of detergent and glucose.
