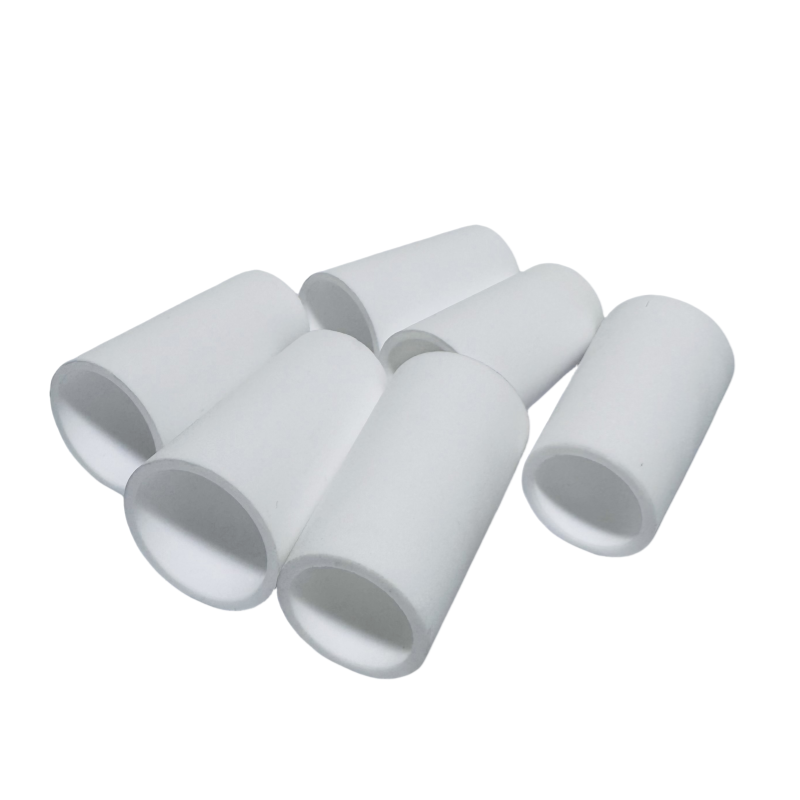

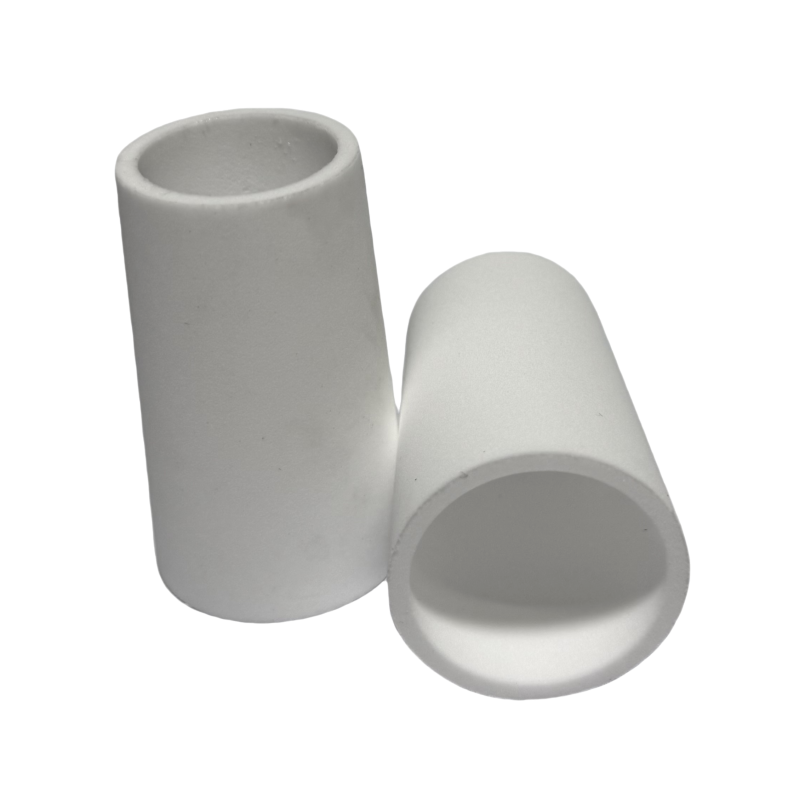

EKF20A 40 Micron PE Sintered Filter Element

The basic information of EKF20A 40 micron PE sintered filter element is as follows:

1. Product use:

- The filter element is mainly used in hydraulic oil systems to continuously filter impurities, moisture and other pollutants in the oil to ensure the normal operation of the system. It is widely used in power plants, steel mills, shield tunneling, mining, papermaking, petroleum, ships, chemicals, textiles, various power machinery and other industries.

2. Filter element filter material:

- It is sintered with ultra-high molecular weight polyethylene (PE), with a compact, strong and lightweight structure, can withstand high filtration pressure, is non-toxic and odorless, and has good corrosion resistance to acid and alkali solvents.

3. Filtration accuracy:

- The filtration accuracy is 40 microns, which can filter out solid particles of corresponding size and make the filtrate clear and transparent.

4. Technical parameters:

- Working pressure: ≤450 kg (4.5MPa).

- Working temperature: -30~120℃.

- Working flow: 6~9100 L/min.

- Pressure differential alarm: 1bar, 3bar, 3.5bar.

- Filter material: glass fiber, stainless steel.

- Seal: PTFE, FKM.

5. Filter element testing standards:

- Including ISO 2941, ISO 2942, ISO 2943, ISO 3723, ISO 3724, ISO 3968, ISO 4572, ISO 16889 and other international standards.

6. Main application areas:

- Filtration of hydraulic systems of rolling mills and continuous casting machines and filtration of various lubrication equipment.

- Petrochemical industry: separation and recovery of products and intermediate products in oil refining and chemical production processes, liquid purification, oilfield injection water and natural gas particle removal filtration.

- Textile industry: stirring liquid, air suspension, wetting, operating accumulators, spraying, spraying systems, infusion, etc.

- Electronics and pharmaceutical industries: pre-treatment filtration of reverse osmosis water and deionized water, pre-treatment filtration of detergents and glucose.
