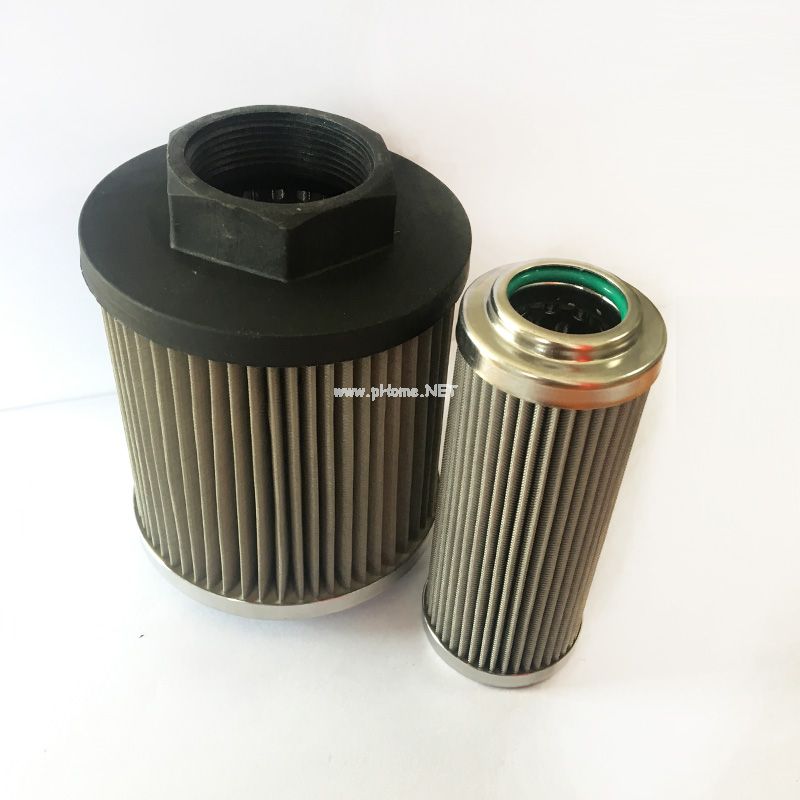

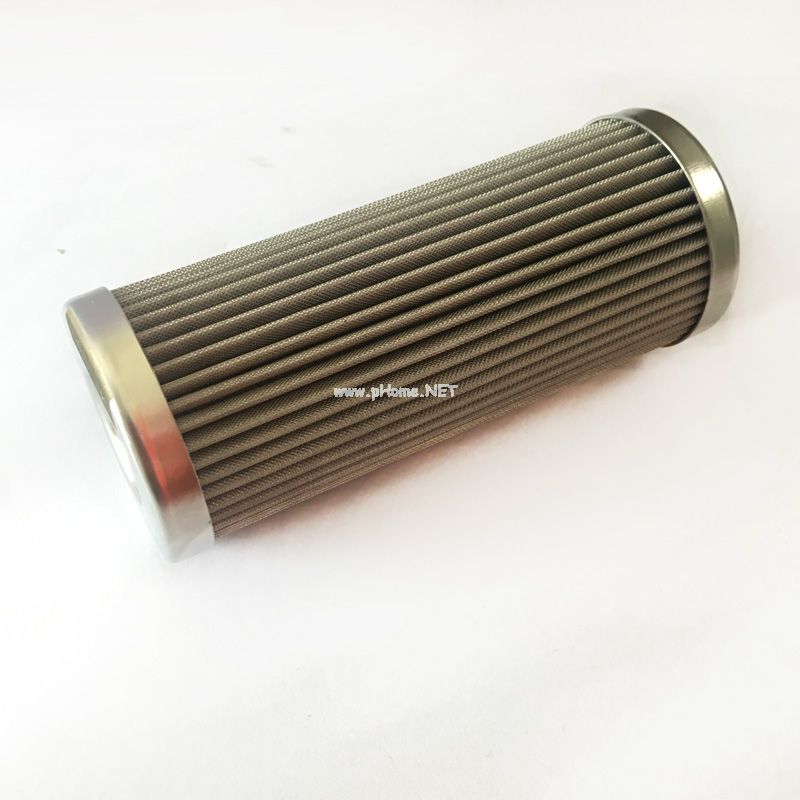

CH0551503501Y00 HCA082E0S8Z Oil Filter Cart Filter Element

The filter elements of models CH0551503501Y00 and HCA082E0S8Z are high-efficiency filter elements specially designed for use in hydraulic systems with the following features and basic information:

1. Filtration Accuracy:

Capable of providing filtration accuracy from 0.01 to 500 microns, effectively removing solid particles and impurities in the fluid.

2. Operating Temperature:

Adapted to a temperature range of -30 to 115 degrees Celsius, ensuring stable operation in different environments.

3. Maximum Working Pressure:

The maximum working pressure is 420kg, suitable for high pressure hydraulic system.

4. Filter Material: Filter element materials include glass fiber, filter paper, metal mesh, metal powder, metal sintered, sintered felt, etc. These materials provide good filtration effect and durability.

4. Application Areas:

Widely used in power plants, steel mills, shield construction, mining, paper making, petroleum, shipbuilding, chemical industry, textile, all kinds of power machinery and other industries, as well as food processing, plastics industry, paper industry and so on.

5. Testing Standards:

Follow ISO standards for testing, including cartridge rupture resistance, structural integrity, material and liquid compatibility, end-to-end compliance, fatigue characteristics, differential pressure flow characteristics and filtration characteristics of the test.



6. Technical Parameters:

Working pressure can be 16bar, special requirements can be customized. The maximum working temperature can reach 120℃. The working flow range is 2-2600L/min, the differential pressure alarm range is 1bar to 3.5bar, the filter material includes fiberglass, stainless steel, the sealing material is fixed eye rubber and Viton.



7. Main Applications:

Used in the filtration of hydraulic system of rolling mill and continuous casting machine and various lubrication equipment, separation and recovery of petrochemical products and intermediate products, liquid purification of textile industry, water treatment of electronic and pharmaceutical industry, lubrication system of machining equipment and purification of compressed air.

There are various types of filters in hydraulic systems, each with its own specific purpose and characteristics. The following are some common types of hydraulic system filters and their characteristics:

1. suction oil filter

2. pressure oil circuit filter

3. oil return filters

4. circulation filters

5. air filters

6. Magnetic filter

7. Sintered Filter

8. Stainless Steel Fiber Filter

9. Synthetic resin filters

10. Microporous plastic filters
