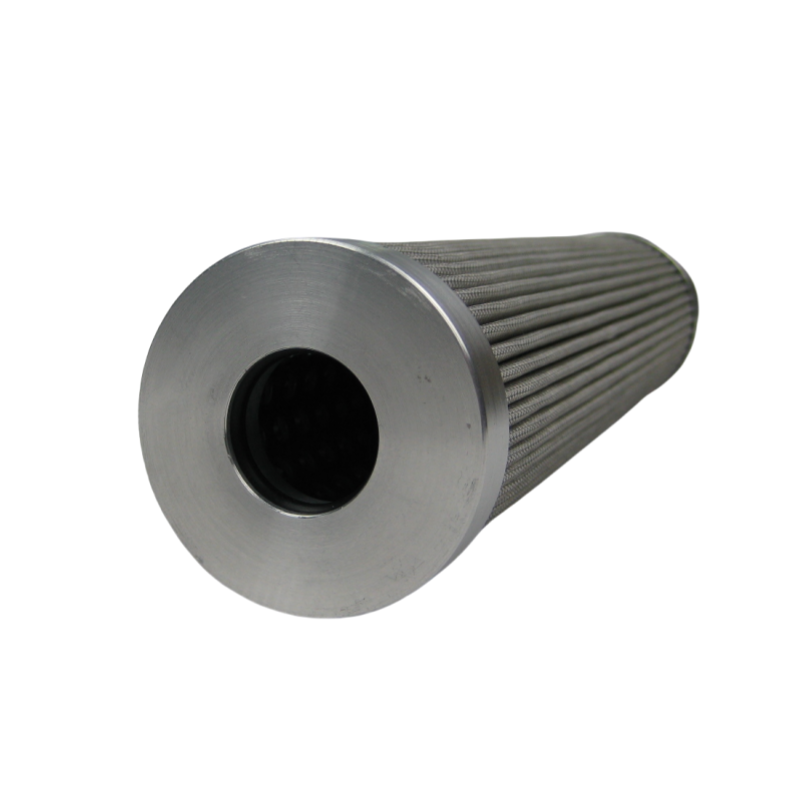

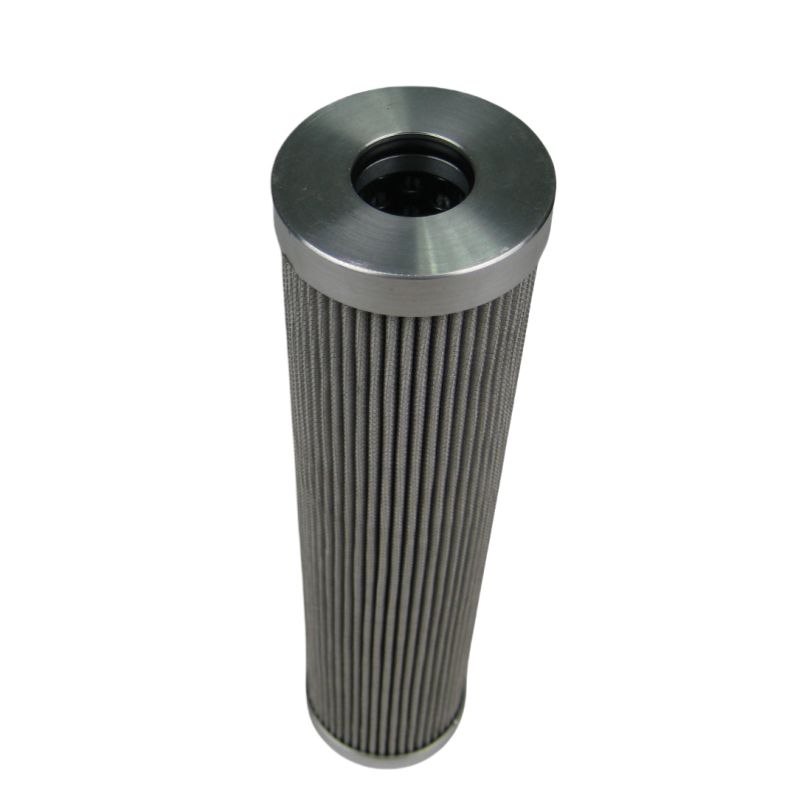

The basic information about the C00105-202 machine tool high-pressure filter element is as follows:

1. Product introduction:

   - C00105-202 high-pressure filter element adopts high-quality and high-efficiency filter material, suitable for single-cylinder and double-cylinder filters, and is widely used in food processing, plastic industry, paper industry, power plants, petrochemicals, steel plants, cement plants, ships and other industries.

2. Technical parameters:

   - Working pressure: 16bar, special requirements can be customized.

   - Maximum operating temperature: 120℃.

   - Working flow: 2-2600L/min.

   - Pressure difference alarm: 1bar, 3bar, 3.5bar optional.

   -Filter material: fiberglass, stainless steel.

   -Sealing material: fixed rubber, fluorine rubber.

3. Filter element testing standards:

   - Including ISO 2941 (Test method for filter element rupture resistance), ISO 2942 (Test method for structural integrity of hydraulic filter element), ISO 2943 (Test method for compatibility of hydraulic filter element material and liquid), etc.

4. Main application areas:

   - Used for filtration of hydraulic systems of steel rolling mills and continuous casting machines and filtration of various lubricating equipment.

   - Petrochemical industry: separation and recovery of products and intermediate products in oil refining and chemical production processes, liquid purification, purification of magnetic tapes, CDs and photographic films in manufacturing, particle removal and filtration of oil field injection well water and natural gas.

   - Textile industry: mixing liquids, air lifting, moistening, operating pressure accumulators, spraying liquids, spray systems, infusion.
