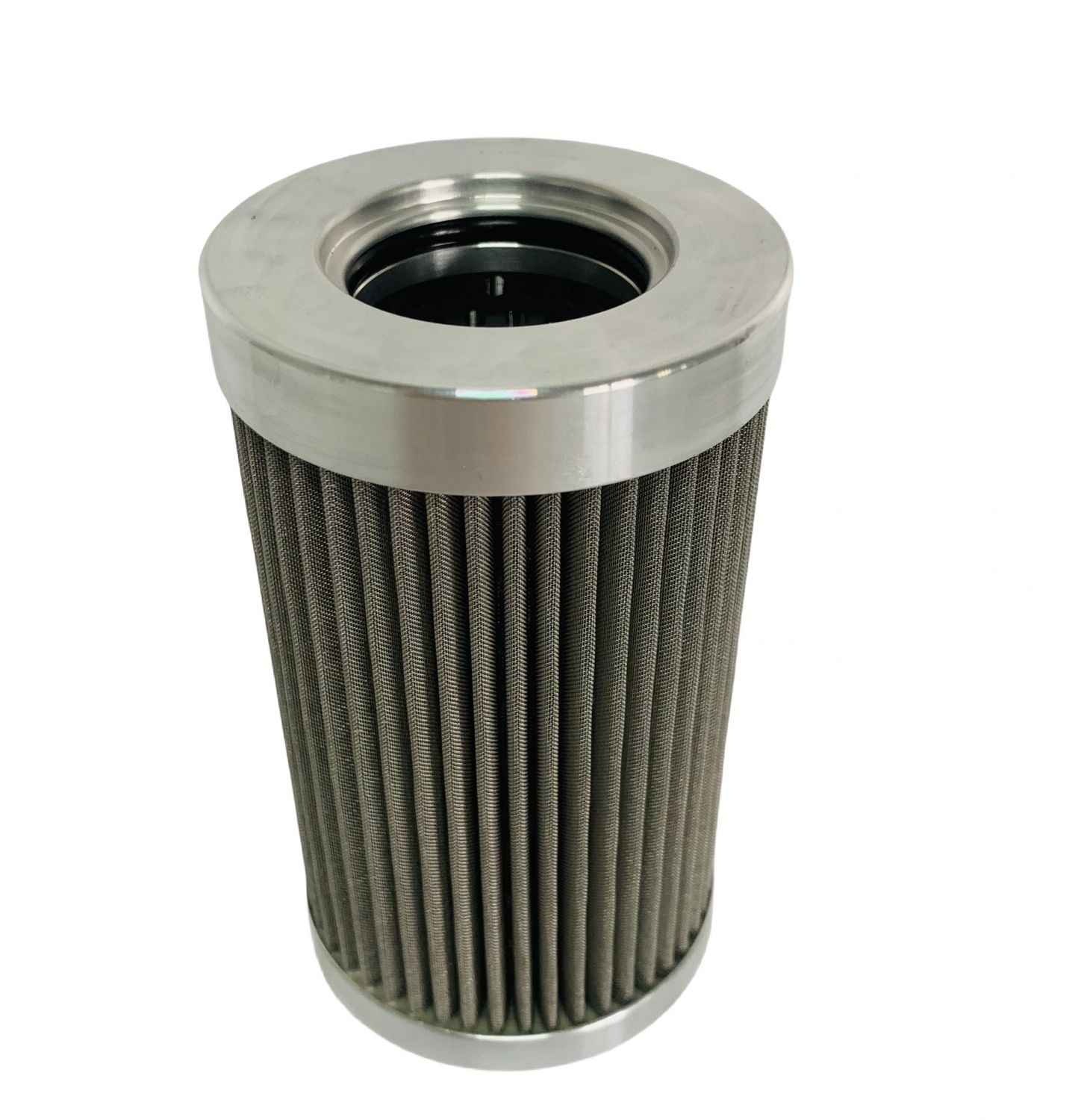

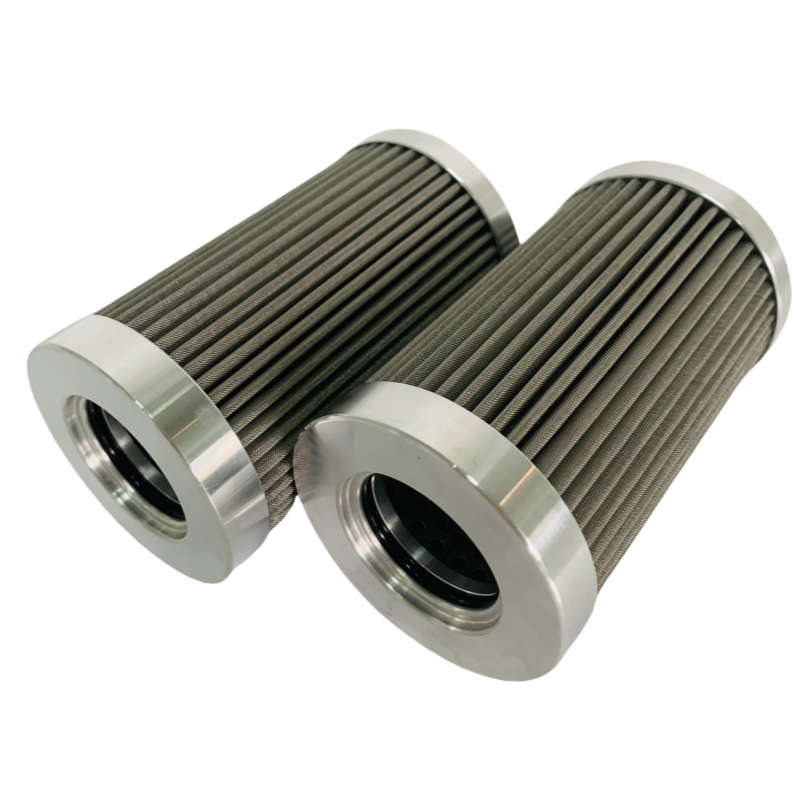

The following is the basic information about 5064-100V and 5064-200V stainless steel mesh coarse filter elements:

Product specifications

Model: 5064-100V, 5064-200V.

Filter material: Mainly stainless steel mesh, with high strength and corrosion resistance.

Filter accuracy: The filter accuracy of metal mesh filter material is usually 3-400μm.

Working pressure: The rated working pressure is 16bar, and special requirements can be customized.

Working temperature: The maximum working temperature is 120℃.

Working flow: 2-2600L/min.

Pressure difference alarm: 1bar, 3bar, 3.5bar.

Application field

Industrial field: Widely used in hydraulic systems, lubrication equipment, rolling mills, continuous casting machines, etc., for filtering impurities and moisture in oil.

Petrochemical industry: Used for product separation, liquid purification, and natural gas particle removal filtration in oil refining and chemical production.

Food and beverage industry: Suitable for liquid purification in food processing, beverage production and other fields.

Textile industry: used for stirring liquid, air suspension, spraying, spraying system, purification in polyester melt drawing process.

Other fields: can also be used in papermaking, shipbuilding, pharmaceutical, electronics and other industries

Other characteristics

Strong corrosion resistance: stainless steel material enables it to be used in harsh environments such as acid and alkali.

Cleaning and maintenance: the filter element can be reused, simple and convenient to clean, reducing the replacement cost.

Testing standards: in line with international standards such as ISO 2941, ISO 2942, ISO 2943, etc.
