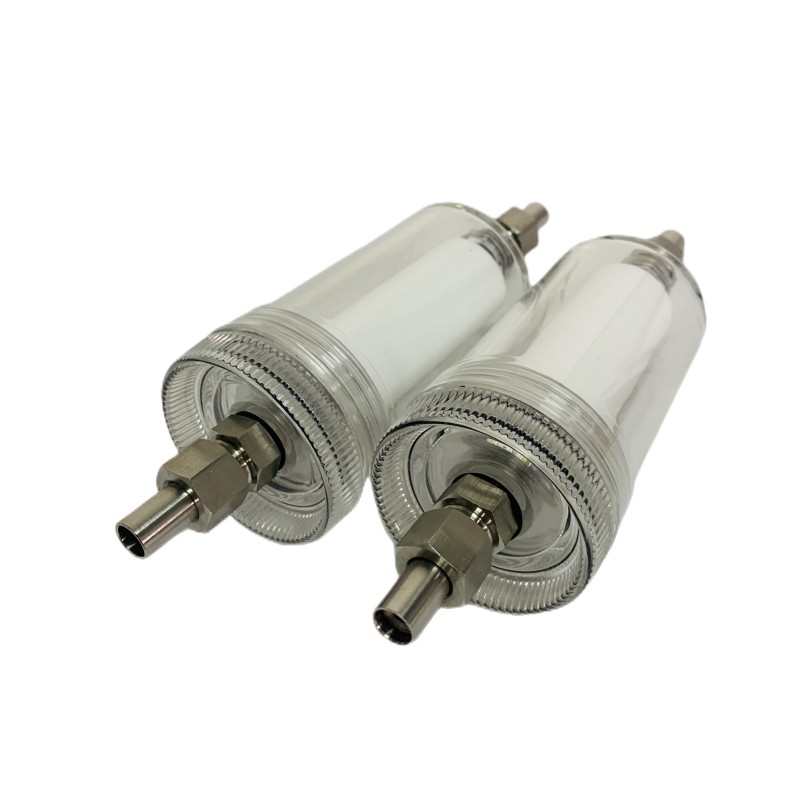

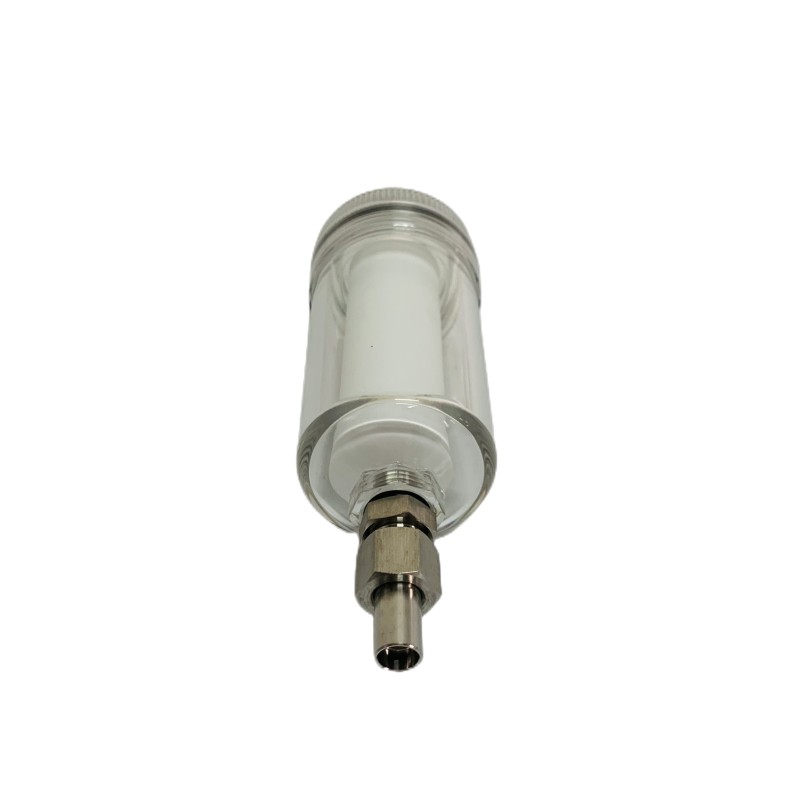

HDTZ-216-1PE Sampling Filter

HDTZ-216-1PE is a low-temperature sampling filter for power plants, mainly used for water sample filtration in power plants. Here is some basic information about this filter:

1. Product Overview:
HDTZ-216-1PE filters are usually installed in low-pressure filters and are designed with the specific conditions of the power plant in mind, so they may vary based on specific needs. It is simple and convenient to replace the filter element. You only need to open the lower end cover of the filter, remove the old filter element and replace it with the new filter element.



2. Technical Parameters:

   - Nominal pressure: ≤0.8Mpa

   - Experimental pressure: 1.0Mpa

   - Applicable medium: instrument sample water

   - Applicable temperature: ≤60℃

   -Flow rate: 2500ml/min

3. Usage scenarios:

1) Water treatment industry: used in drinking water and food industry, water treatment related systems, as well as R.O. and general water treatment to ensure the purity of water quality.

2) Chemical industry: used in the filtration of acid and alkali liquids in chemical processes, as well as the filtration of chemical raw materials and organic solvents.

3) Paint and paint industry: Filtration systems for water-soluble paints, oils, and coatings.

4) Electronic coating: Plays a role in electroplating (ED) and filtration of chemical liquids.

5) Machinery industry: used for filtration of machinery oil, cutting oil, heavy oil, and fuel oil.

6) his filter is generally used in conjunction with a flow meter and has been used in power plants.

In addition, low-pressure filter TZ216 can also be used in the following fields:

- Protect the instrument electrode filter, which uses cotton thread to press the filter element, has high filtration accuracy, and is equipped with a check valve to prevent the electrode from losing water.

- The shell is made of PC alloy. When replacing the filter element, you only need to unscrew the lower end cover.

If you have any questions, please feel free to contact us！
